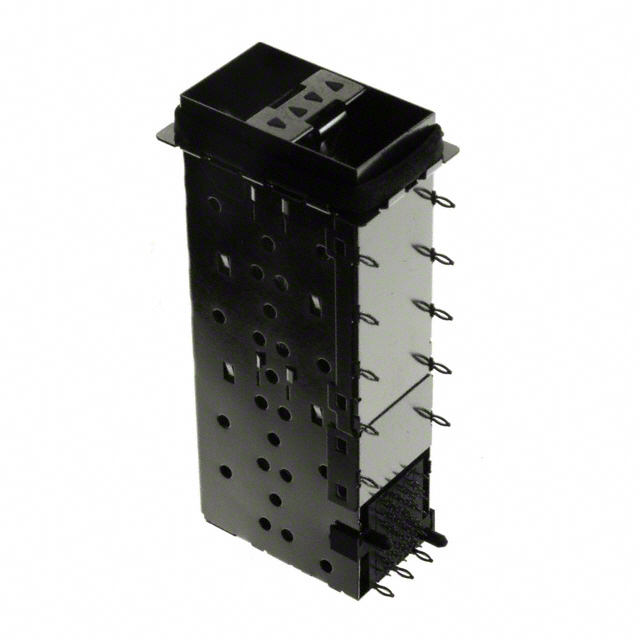

U86-D1427-10121

Obsolete

Amphenol ICC (Commercial Products)

CONN SFP+ RCPT W/CAGE 2X1 40P RA

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

CONN SFP+ RCPT W/CAGE 2X1 40P RA

Technical Specifications

Parameters and characteristics for this part

Specification	U86-D1427-10121

Connector Style	Ganged (2x1), Receptacle with Cage
Connector Type	SFP+
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	EMI Shielded, Board Guide, Light Pipe
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Termination	Press-Fit

Part	Contact Finish	Features	Termination	Connector Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions [x]	Number of Positions [custom]	Number of Positions [y]	Number of Positions	Number of Positions [custom]	Number of Positions [custom]
Amphenol ICC (Commercial Products) U86-D1427-10121	Gold	Board Guide EMI Shielded Light Pipe	Press-Fit	SFP+	Through Hole Right Angle	40	0.76 Ám	30 Áin	Ganged (2x1) Receptacle with Cage
Amphenol ICC (Commercial Products) U86-D6627-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x6) Receptacle with Cage	20	240	12
Amphenol ICC (Commercial Products) U86-D2127-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x2) Receptacle with Cage				80	20	4
Amphenol ICC (Commercial Products) U86-D6427-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x6) Receptacle with Cage	20	240	12
Amphenol ICC (Commercial Products) U86-D1627-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle	40	0.76 Ám	30 Áin	Ganged (2x1) Receptacle with Cage
Amphenol ICC (Commercial Products) U86-D2427-10121	Gold	Board Guide Light Pipe	Press-Fit	SFP+	Through Hole Right Angle		0.76 Ám	30 Áin	Ganged (2x2) Receptacle with Cage				80	20	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 (20 x 2) Position SFP+ Receptacle with Cage, Ganged (2x1) Connector Press-Fit Through Hole, Right Angle

Technical documentation and resources
