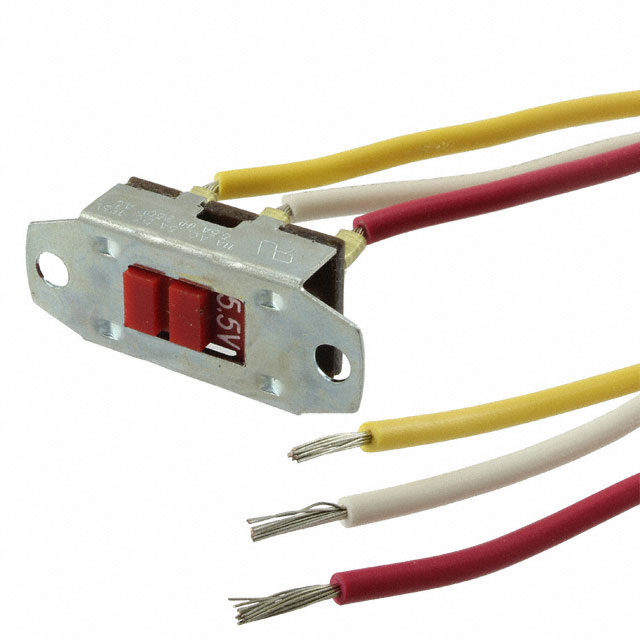

GF-1124-0012
ActiveCW Industries
SWITCH SLIDE SPDT 11A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GF-1124-0012
ActiveCW Industries
SWITCH SLIDE SPDT 11A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-1124-0012 |
|---|---|
| Actuator Length [x] | 0.79 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Screwdriver Slot |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 11 A, 500 mA |
| Electrical Life | 6000 Cycles |
| Features | Red Actuator, 5.5V-12V Marking |
| Mechanical Life | 10000 Steps |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On (Line Voltage Selector) |
| Switch Travel | 4.01 mm |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
GF-1124 Series
| Part | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Circuit | Contact Timing | Switch Function | Contact Material | Electrical Life | Actuator Length [x] | Switch Travel | Actuator Material | Voltage Rating - AC | Mechanical Life | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | Screwdriver Slot | 104 °C | -10 °C | Silver | SPDT | Not Specified | On-On (Line Voltage Selector) | Copper | 6000 Cycles | 0.79 mm | 4.01 mm | Nylon 6/6 Polyamide (PA66) | 125 V | 10000 Steps | 125 VDC | Wire Leads | 11 A 500 mA | 5.5V-12V Marking Red Actuator |
CW Industries | Standard | 104 °C | -10 °C | Silver | SPDT | Not Specified | On-On | Copper | 6000 Cycles | 8.74 mm | 4.01 mm | Nylon 6/6 Polyamide (PA66) | 125 V | 10000 Steps | 125 VDC | Solder Lug | 11 A 500 mA | |
CW Industries | Standard | 104 °C | -10 °C | Silver | SPDT | Not Specified | On-On | Copper | 6000 Cycles | 8.74 mm | 4.01 mm | Nylon 6/6 Polyamide (PA66) | 125 V | 10000 Steps | 125 VDC | PC Pin | 11 A 500 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GF-1124 Series
Slide Switch SPDT Panel Mount
