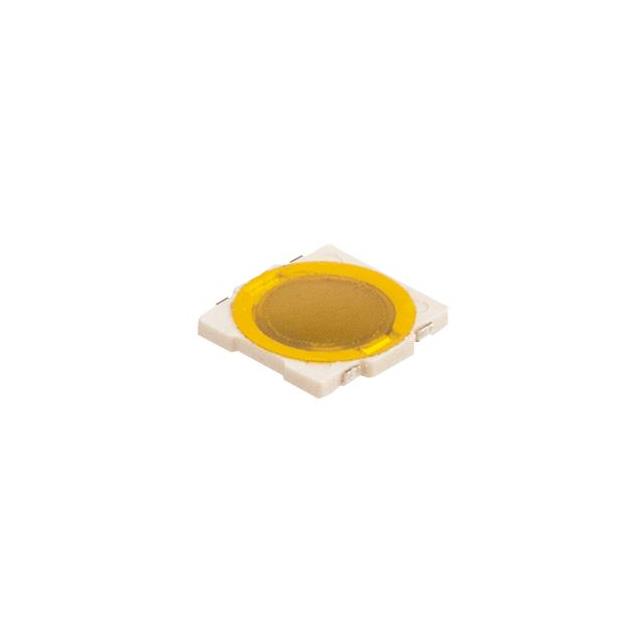

TS17-48-05-YE-160-SMT-TR
ActiveCUI Devices
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.6N
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS17-48-05-YE-160-SMT-TR
ActiveCUI Devices
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 1.6N
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS17-48-05-YE-160-SMT-TR |
|---|---|
| Actuator Height off PCB, Vertical [z] | 0.55 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Flush |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 4.8 mm |
| Outline [y] | 4.8 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.25 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.27 | ||
| 10 | $ 0.26 | |||
| 25 | $ 0.25 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.16 | |||
| Tape & Reel (TR) | 5000 | $ 0.11 | ||
Description
General part information
TS17-48 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
