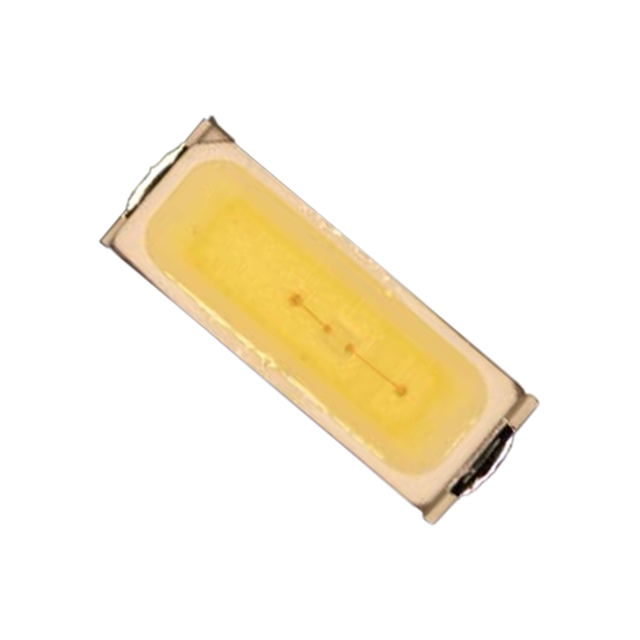

SML-LX4014UWC-TR
ActiveLumex Opto/Components Inc.
LED TITANBRITE COOL WHT SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LX4014UWC-TR
ActiveLumex Opto/Components Inc.
LED TITANBRITE COOL WHT SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LX4014UWC-TR |
|---|---|
| CCT (K) | 6500 K |
| Color | Cool, White |
| Current - Max [Max] | 60 mA |
| Current - Test | 60 mA |
| Flux @ 25°C, Current - Test | 21 lm |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Lumens/Watt @ Current - Test | 113 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1606 (4014 Metric) |
| Size / Dimension [x] | 3.8 mm |
| Size / Dimension [x] | 0.15 " |
| Size / Dimension [y] | 1.4 mm |
| Size / Dimension [y] | 0.055 in |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.36 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.36 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 4000 | $ 0.13 | ||
Description
General part information
SML-LX4014 Series
LED Lighting TitanBrite™ White, Cool 6500K 3.1V 60mA 120° 1606 (4014 Metric)
