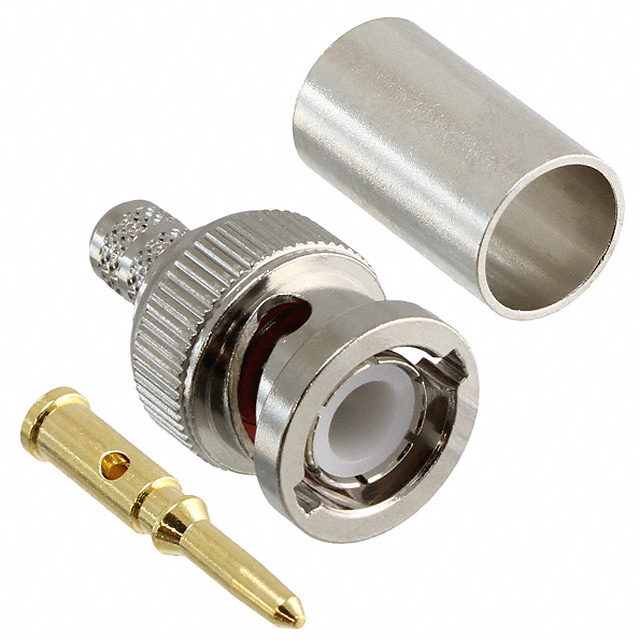

CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
112118
NRNDAmphenol RF
CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 112118 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
1121 Series
| Part | Voltage Rating | Housing Color | Mating Cycles | Mounting Type | Dielectric Material | Cable Group | Frequency - Max [Max] | Connector Style | Connector Type | Body Material | Center Contact Material | Contact Termination | Shield Termination | Fastening Type | Insertion Loss | Number of Ports | Body Finish | Includes | Impedance | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 4 GHz | BNC | Female Socket Jack | Brass | Phosphor Bronze | Crimp | Crimp | Bayonet Lock | 0.2 dB | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 50 Ohms | Gold | ||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Crimp | Crimp | Bayonet Lock | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 75 Ohms | Gold | |||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 82259 88241 89259 9259 Belden 1560A RG-59 Plenum | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Crimp | Crimp | Bayonet Lock | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 75 Ohms | Gold | 85 °C | -55 °C | |
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Crimp | Crimp | Bayonet Lock | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 75 Ohms | Gold | |||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Crimp | Crimp | Bayonet Lock | 0.2 dB | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 50 Ohms | Gold | ||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Crimp | Crimp | Bayonet Lock | 0.2 dB | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 50 Ohms | Gold | ||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 4 GHz | BNC | Female Socket Jack | Brass | Phosphor Bronze | Crimp | Crimp | Bayonet Lock | 0.2 dB | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | 50 Ohms | Gold | ||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) Right Angle | Polyoxymethylene (POM) Acetal | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Solder | Crimp | Bayonet Lock | 0.2 dB | 1 | Nickel | 75 Ohms | Gold | 85 °C | -40 °C | |
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) Right Angle | Polyoxymethylene (POM) Acetal | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Solder | Crimp | Bayonet Lock | 0.2 dB | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | 50 Ohms | Gold | ||
Amphenol RF | 500 V | Silver | 500 | Free Hanging (In-Line) | Polyoxymethylene (POM) Acetal | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | 4 GHz | BNC | Male Pin Plug | Brass | Brass | Crimp | Crimp | Bayonet Lock | 1 | Nickel | 1 Connector 1 Contact 1 Ferrule | 75 Ohms | Gold | 85 °C | -55 °C |
