919-NM101P-51S

Active

Amphenol RF

CONN MCX PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	919-NM101P-51S

Body Finish	White Bronze
Body Material	Beryllium Copper
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Non-Magnetic
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms

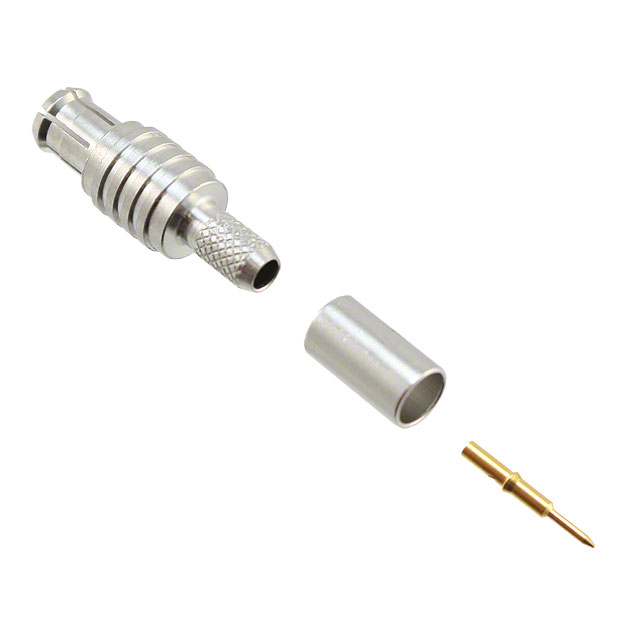

Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Body Finish	Impedance	Cable Group	Mating Cycles	Number of Ports	Mounting Type	Shield Termination	Insertion Loss	Connector Style	Frequency - Max [Max]	Center Contact Material	Housing Color	Fastening Type	Connector Type	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Features	Contact Termination	Center Contact Plating
Amphenol RF 919-NM101P-51S	White Bronze	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	1	Free Hanging (In-Line)	Crimp	0.1 dB	MCX	6000 MHz	Beryllium Copper	Silver	Snap-On	Male Pin Plug	1 Connector 1 Contact 1 Ferrule	-40 °C	155 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Non-Magnetic	Crimp	Gold
Amphenol RF 919-NM104P-51A	White Bronze	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174	500	1	Free Hanging (In-Line) Right Angle	Crimp	0.1 dB	MCX	6000 MHz	Beryllium Copper	Silver	Snap-On	Male Pin Plug	Connector End Cap Ferrule Insulator	-40 °C	155 °C	Polyoxymethylene (POM) Acetal Polytetrafluoroethylene (PTFE)	Beryllium Copper	Non-Magnetic	Solder	Gold
Amphenol RF 919-NM109J-51P	Gold	50 Ohms		500	1	Through Hole	Solder	0.1 dB	MCX	6000 MHz	Beryllium Copper	Gold	Snap-On	Female Socket Jack		-40 °C	155 °C	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Non-Magnetic	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
