1PMT16AT1G

Obsolete

ON Semiconductor

TVS DIODE 16VWM 26VC POWERMITE

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TVS DIODE 16VWM 26VC POWERMITE

Technical Specifications

Parameters and characteristics for this part

Specification	1PMT16AT1G

Applications	General Purpose
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

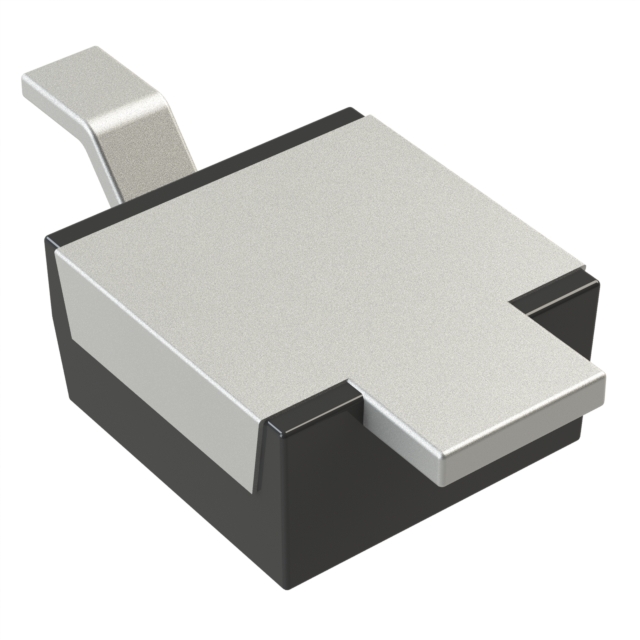

Package / Case	DO-216AA
Power - Peak Pulse	1000 W
Power - Peak Pulse	1 kW
Power Line Protection	False
Supplier Device Package	Powermite
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Clamping (Max) @ Ipp [Max]	26 V
Voltage - Reverse Standoff (Typ)	16 V

Part	Unidirectional Channels [custom]	Package / Case	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Mounting Type	Type	Applications	Power - Peak Pulse	Power - Peak Pulse	Power Line Protection
ON Semiconductor 1PMT16AT1G	1	DO-216AA	Powermite	26 V	-55 °C	150 °C	16 V	Surface Mount	Zener	General Purpose	1000 W	1 kW
ON Semiconductor 1PMT16AT3	1	DO-216AA	Powermite	26 V	-55 °C	150 °C	16 V	Surface Mount	Zener	General Purpose	1000 W	1 kW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26V Clamp Ipp Tvs Diode Surface Mount Powermite
