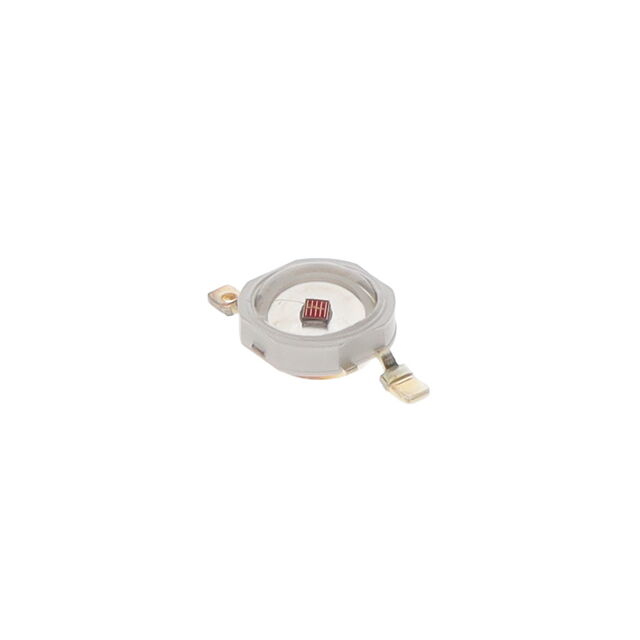

ASMT-AR30-AST00

Obsolete

Broadcom Limited

MS AV,3W RED

Search across all available documentation for this part.

Obsolete

Broadcom Limited

MS AV,3W RED

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-AR30-AST00

Color	Red
Current - Max [Max]	700 mA
Current - Test	350 mA
Height - Seated (Max)	4.2 mm
Height - Seated (Max) [Max]	0.165 in
Lumens/Watt @ Current - Test	82 lm/W
Luminous Flux @ Current/Temperature	60 lm
Luminous Flux @ Current/Temperature [Max]	87 lm
Luminous Flux @ Current/Temperature [Min]	52 lm
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing
Size / Dimension [x]	0.291 "
Size / Dimension [x]	7.4 mm
Size / Dimension [y]	0.291 "
Size / Dimension [y]	7.4 mm
Supplier Device Package	2-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	625 nm

Part	Package / Case	Supplier Device Package	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Wavelength	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Viewing Angle	Mounting Type	Wavelength [Min]	Wavelength [Max]	Thermal Resistance of Package [diameter]	Size / Dimension [diameter]	Size / Dimension [diameter]
Broadcom Limited ASMT-AR30-AST00	2-SMD Gull Wing	2-SMD	87 lm	60 lm	52 lm	625 nm	0.165 in	4.2 mm	0.291 "	0.291 "	7.4 mm	7.4 mm	350 mA	82 lm/W	2.1 V	Red	700 mA	140 °	Surface Mount
Broadcom Limited ASMT-AR30-ARS00	2-SMD Gull Wing Exposed Pad	2-SMD	87 lm	70 lm	52 lm	628 nm	0.165 in	4.2 mm					350 mA	95 lm/W	2.1 V	Red	700 mA	140 °	Surface Mount	620 nm	635 nm	10 °C/W	0.315 "	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color ASMT-Ax3x Red 625nm 2-SMD, Gull Wing
