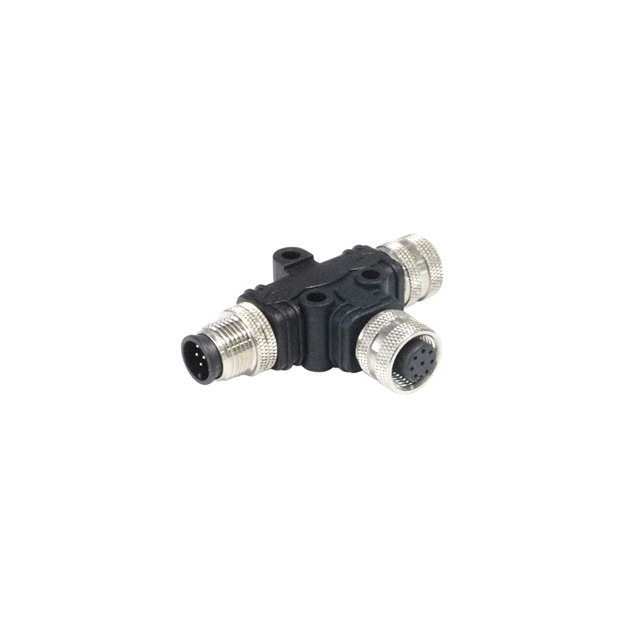

PXPPVC12TSFM12AFBIFB

Active

BULGIN LIMITED

CONN SPLIT M12 12POS F-M-F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PXPPVC12TSFM12AFBIFB

Active

BULGIN LIMITED

CONN SPLIT M12 12POS F-M-F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXPPVC12TSFM12AFBIFB

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins (2)
Current Rating (Amps)	1.5 A
Features	Coupling Nut
Housing Material	Polyvinyl Chloride (PVC)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	12
Number of Positions (Convert To)	12
Number of Positions (Convert To)	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	30 VDC

PXPPVC Series

Part	1st Connector Orientation	Cable Type	1st Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Number of Positions	1st Connector Type	1st Connector Gender	Assembly Configuration	Ingress Protection	Usage	Shielding	2nd Connector Type	Color	1st Connector Mounting Type	Cable Material	1st Connector Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation (Convert To)	Orientation (Convert From)	Mounting Type	Shell Size - Insert (Convert From)	Housing Material	Current Rating (Amps)	Convert To (Adapter End)	Convert From (Adapter End)	Features	Number of Positions (Convert From)	Shell Size - Insert (Convert To) [custom]	Voltage Rating	Number of Positions (Convert To)	Number of Positions (Convert To)	Connector Style	1st Connector Orientation [custom]
BULGIN LIMITED PXPPVC08FIM06AYT010PVC	A	Round	All	1 m	3.28 ft	6	Receptacle	Male Pins	Y-Adapter on One End	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC12TSFM12AFBIFB										IP67 - Dust Tight Waterproof		Unshielded						-25 °C	80 C	A	A	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	1.5 A	Male Pins (2)	Female Sockets	Coupling Nut	12	M12	30 VDC	12	2	Distributor T-Shaped
BULGIN LIMITED PXPPVC08FBF08ACL010PVC	A	Round	All	1 m	3.28 ft	8 positions	Plug	Female Sockets	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC12TSFM04AFBIFB										IP67 - Dust Tight Waterproof		Unshielded						-25 °C	80 C	A	A	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	4 A	Male Pins (2)	Female Sockets	Coupling Nut	4	M12	250 VDC	4		Distributor T-Shaped
BULGIN LIMITED PXPPVC08FIM04PCL010PVC		Round	All	1 m	3.28 ft	4	Receptacle	Male Pins	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8																		P
BULGIN LIMITED PXPPVC12RAM08ACL010PVC	A	Round	All	1 m	3.28 ft	8 positions	Receptacle Right Angle	Male Pins	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M12
BULGIN LIMITED PXPPVC12TSFF08AFBBFB										IP67 - Dust Tight Waterproof		Unshielded						-25 °C	80 C	A	A	Free Hanging (In-Line)	M12	Polyvinyl Chloride (PVC)	2 A	Female Sockets (2)	Female Sockets	Coupling Nut	8	M12	30 VDC	8	2	Distributor T-Shaped
BULGIN LIMITED PXPPVC08RAF08ACL010PVC	A	Round	All	1 m	3.28 ft	8 positions	Plug Right Angle	Female Sockets	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC08FIM08AYT010PVC	A	Round	All	1 m	3.28 ft	8 positions	Receptacle	Male Pins	Y-Adapter on One End	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M8
BULGIN LIMITED PXPPVC12FIM05BCL010PVC	B	Round	All	1 m	3.28 ft	5	Receptacle	Male Pins	Standard	IP67 - Dust Tight Waterproof	Industrial Environments	Unshielded	Wire Leads	Black	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	M12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.38
		10	$ 50.18
		25	$ 47.04
		50	$ 44.79
		100	$ 42.66

Description

General part information

PXPPVC Series

Circular Connector Distributor T-Shaped 12/12 (2) Female Sockets/Male Pins (2) Free Hanging (In-Line)
