EPS.00.250.NTN

Active

LEMO

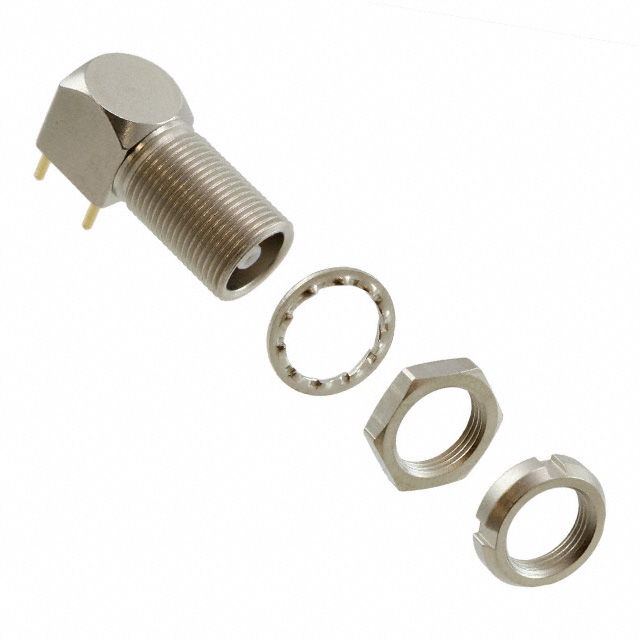

CONN NIMCAMAC RCPT R/A 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPS.00.250.NTN

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Lockwasher, 2 Nuts, 1 Connector
Ingress Protection	IP50
Mating Cycles	5000
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

Part	Mounting Feature	Connector Style	Body Material	Fastening Type	Includes	Impedance	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Mounting Type	Ingress Protection	Contact Termination	Body Finish	Mating Cycles	Dielectric Material	Number of Ports	Shield Termination	Connector Type	Voltage Rating	Center Contact Plating
LEMO EPS.00.250.NTN	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	Brass	Push-Pull	1 Connector 1 Lockwasher 2 Nuts	50 Ohms	Bronze	-55 °C	260 ░C	Silver	Panel Mount Right Angle Through Hole	IP50	Solder	Nickel	5000	Polytetrafluoroethylene (PTFE)	1	Solder	Female Socket Receptacle	700 VDC	Gold
LEMO EPS.00.250.NTN9	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	Brass	Push-Pull	1 Connector 1 Lockwasher 2 Nuts	50 Ohms	Bronze	-55 °C	260 ░C	Silver	Panel Mount Right Angle Through Hole	IP50	Solder	Nickel	5000	Polytetrafluoroethylene (PTFE)	1	Solder	Female Socket Receptacle	700 VDC	Gold
LEMO EPS.00.250.NTDY	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	Brass	Push-Pull	1 Connector 1 Lockwasher 2 Nuts	50 Ohms	Bronze	-55 °C	260 ░C	Silver	Panel Mount Right Angle Through Hole	IP50	Solder	Nickel	5000	Polytetrafluoroethylene (PTFE)	1	Solder	Male Pin Receptacle	700 VDC	Gold
LEMO EPS.00.250.NTD	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	Brass	Push-Pull	1 Connector 1 Lockwasher 2 Nuts	50 Ohms	Brass	-55 °C	260 ░C	Silver	Panel Mount Right Angle Through Hole	IP50	Solder	Nickel	5000	Polytetrafluoroethylene (PTFE)		Solder	Male Pin Receptacle	700 VDC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
