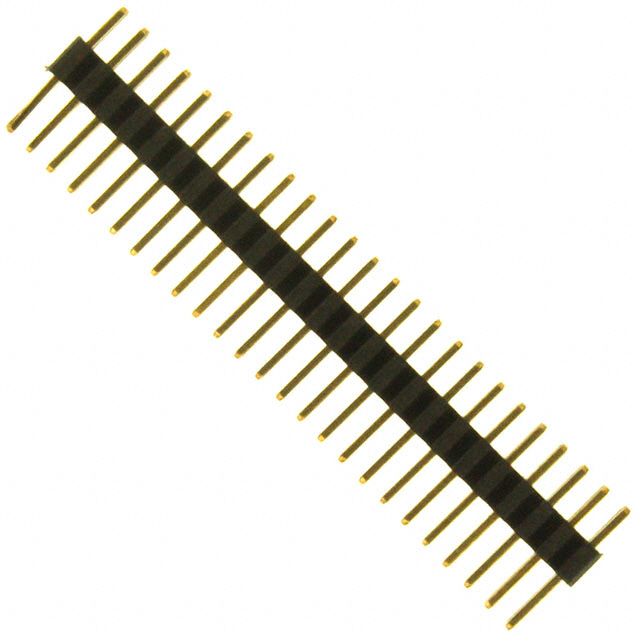

SMH150-LPSE-D25-ST-BK

Active

Sullins Connector Solutions

CONN HEADER VERT 50POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

SMH150-LPSE-D25-ST-BK

Active

Sullins Connector Solutions

CONN HEADER VERT 50POS 1MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMH150-LPSE-D25-ST-BK

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Mating	1.8 mm
Contact Length - Mating	0.071 in
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.228 "
Overall Contact Length	5.8 mm
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

SMH150 Series

Part	Contact Material	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Mounting Type	Contact Finish - Post	Insulation Color	Termination	Fastening Type	Number of Positions Loaded	Insulation Material	Contact Finish - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Sullins Connector Solutions SMH150-LPPE-D05-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin	Flash	Flash	10	0.228 "	5.8 mm
Sullins Connector Solutions SMH150-LPSE-D25-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin		Flash	50	0.228 "	5.8 mm	10 çin	0.25 çm
Sullins Connector Solutions SMH150-LPPE-D35-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin	Flash	Flash	70	0.228 "	5.8 mm
Sullins Connector Solutions SMH150-LPSE-D22-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin		Flash	44	0.228 "	5.8 mm	10 çin	0.25 çm
Sullins Connector Solutions SMH150-LPPE-D31-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin	Flash	Flash	62	0.228 "	5.8 mm
Sullins Connector Solutions SMH150-LPSE-D14-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin		Flash	28	0.228 "	5.8 mm	10 çin	0.25 çm
Sullins Connector Solutions SMH150-LPPE-D45-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin	Flash	Flash	90	0.228 "	5.8 mm
Sullins Connector Solutions SMH150-LPSE-D41-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin		Flash	82	0.228 "	5.8 mm	10 çin	0.25 çm
Sullins Connector Solutions SMH150-LPSE-D42-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin		Flash	84	0.228 "	5.8 mm	10 çin	0.25 çm
Sullins Connector Solutions SMH150-LPPE-D11-ST-BK	Phosphor Bronze	1.8 mm	0.071 in	1.5 mm	0.059 "	125 °C	-40 °C	Square	0.039 in	1 mm	Unshrouded	Through Hole	Gold	Black	Solder	Push-Pull	All	Liquid Crystal Polymer (LCP)	Gold	2	2.5 mm	0.098 in	UL94 V-0	0.039 "	1 mm	Header	Male Pin	Flash	Flash	22 positions	0.228 "	5.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.58
		10	$ 7.29
		100	$ 6.20
		500	$ 5.79

Description

General part information

SMH150 Series

Connector Header Through Hole 50 position 0.039" (1.00mm)

Documents

Technical documentation and resources

No documents available
