12-5-VF08B

Active

TapeCase

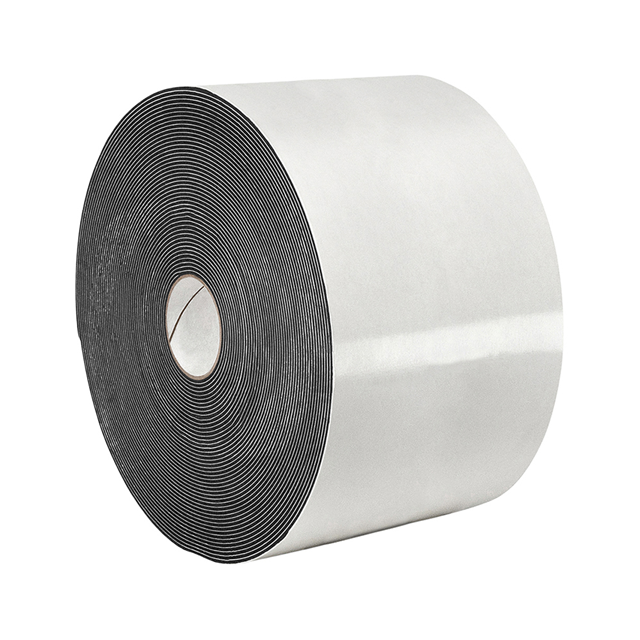

TAPE DOUBLE COATED FOAM BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12-5-VF08B

Active

TapeCase

TAPE DOUBLE COATED FOAM BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	12-5-VF08B

Adhesive	High Tack Acrylic
Backing, Carrier [custom]	PVC
Backing, Carrier [custom]	Paper
Color	Black
Tape Type	Double Coated Foam
Temperature Range	66 °C
Temperature Range	150 °F
Thickness	0.125 in
Thickness	3.175 mm
Thickness	125 mils
Thickness	0.125 "
Usage	Bonding

VF08B Series

...

Part	Temperature Range	Temperature Range	Usage	Backing, Carrier [custom]	Backing, Carrier [custom]	Tape Type	Width [x]	Width [x]	Color	Length [x]	Length [x]	Adhesive	Thickness	Thickness	Thickness	Thickness	Length	Length	Width	Width	Width	Width
TapeCase VF08B 4" X 4"-25	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam	4 "	101.6 mm	Black	101.6 mm	4 "	High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "
TapeCase VF08B 4" X 9"-25	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam	4 "	101.6 mm	Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "	9 "	228.6 mm
TapeCase VF08B 0.75" X 3"-100	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black		3 in	High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "		76.2 mm	0.75 in	19.05 mm	0.75 in
TapeCase 0.125-5-VF08B	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "
TapeCase VF08B 0.75" X 4"-100	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black	101.6 mm	4 "	High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "			0.75 in	19.05 mm	0.75 in
TapeCase 3.5-5-VF08B	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "
TapeCase VF08B 1.5" X 9"-25	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "	9 "	228.6 mm	1.5 "		38.1 mm	1 1/2
TapeCase 12-5-VF08B	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "
TapeCase VF08B 1.5" X 8"-25	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam			Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "	8 in	203.2 mm	1.5 "		38.1 mm	1 1/2
TapeCase VF08B 4" X 8"-25	66 °C	150 °F	Bonding	PVC	Paper	Double Coated Foam	4 "	101.6 mm	Black			High Tack Acrylic	0.125 in	3.175 mm	125 mils	0.125 "	8 in	203.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2	$ 151.88

Description

General part information

VF08B Series

Double Coated Foam Tape High Tack Acrylic Adhesive Black X
