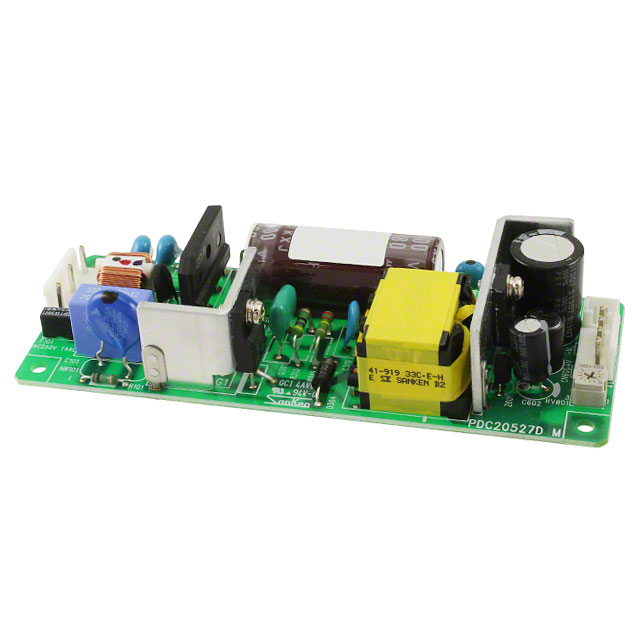

SWF050P-24

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 24V 50W

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

AC/DC CONVERTER 24V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	SWF050P-24

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	2.1 A
Efficiency	85 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	132 mm
Size / Dimension [x]	5.2 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	28.5 mm
Size / Dimension [z]	1.12 in
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Efficiency	Current - Output 1	Voltage - Isolation	Features	Mounting Type	Applications	Number of Outputs	Power (Watts)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type
Sanken Electric USA Inc. SWF050P-24	24 V	132 mm	1.97 "	28.5 mm	50 mm	5.2 in	1.12 in	CE cURus	85 %	2.1 A	3000 V	Adjustable Output Universal Input	Chassis Mount	ITE (Commercial)	1	50 W	-10 °C	158 °F	Open Frame
Sanken Electric USA Inc. SWF050P-24-LC	24 V	132 mm	1.97 "	28.5 mm	50 mm	5.2 in	1.12 in	CE cURus	85 %	2.1 A	3000 V	Adjustable Output Universal Input	Chassis Mount	ITE (Commercial)	1	50 W	-10 °C	158 °F	Enclosed
Sanken Electric USA Inc. SWF050P-24-R	24 V	132 mm	1.97 "	28.5 mm	50 mm	5.2 in	1.12 in	CE cURus	85 %	2.1 A	3000 V		Chassis Mount	ITE (Commercial)	1	50 W	-10 °C	158 °F	Open Frame
Sanken Electric USA Inc. SWF050P-24-L	24 V	132 mm	1.97 "	28.5 mm	50 mm	5.2 in	1.12 in	CE cURus	85 %	2.1 A	3000 V	Adjustable Output Universal Input	Chassis Mount	ITE (Commercial)	1	50 W	-10 °C	158 °F	Open Frame
Sanken Electric USA Inc. SWF050P-24-L-R	24 V	132 mm	1.97 "	28.5 mm	50 mm	5.2 in	1.12 in	CE cURus	85 %	2.1 A	3000 V		Chassis Mount	ITE (Commercial)	1	50 W	-10 °C	158 °F	Open Frame
Sanken Electric USA Inc. SWF050P-24-LC-R	24 V	132 mm	1.97 "	28.5 mm	50 mm	5.2 in	1.12 in	CE cURus	85 %	2.1 A	3000 V		Chassis Mount	ITE (Commercial)	1	50 W	-10 °C	158 °F	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
