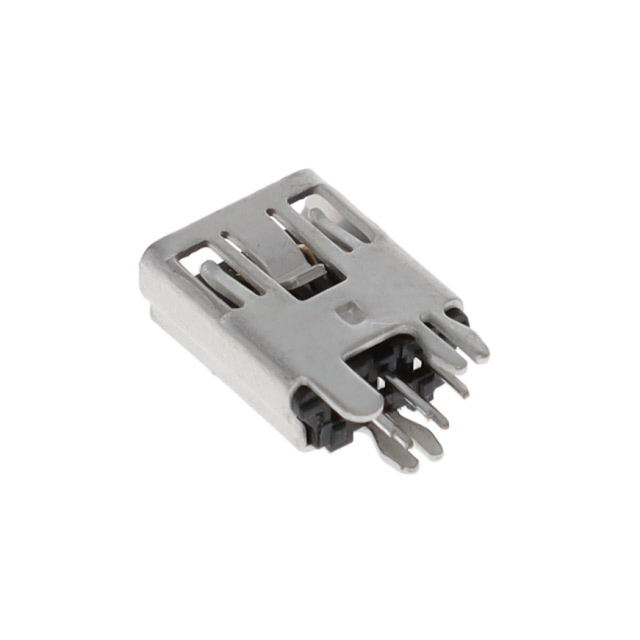

GMSB0512122C2HR

Obsolete

Amphenol ICC (Commercial Products)

MINI USB BTYPE RECEP 5PIN V/T DI

Search across all available documentation for this part.

Obsolete

Amphenol ICC (Commercial Products)

MINI USB BTYPE RECEP 5PIN V/T DI

Technical Specifications

Parameters and characteristics for this part

Specification	GMSB0512122C2HR

Connector Type	USB - mini B
Contact Finish	Gold
Current Rating (Amps)	1 A, 1.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

Part	Shielding	Number of Contacts	Insulation Color	Material Flammability Rating	Termination	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Ports	Voltage - Rated	Mounting Feature	Connector Type	Mounting Type	Gender	Specifications	Shell/Shielding Material	Current Rating (Amps)
Amphenol ICC (Commercial Products) GMSB0512122C2HR	Shielded	5	Black	UL94 V-0	Solder	5000	85 °C	-55 °C	Gold	1	30 V	Vertical	USB - mini B	Through Hole	Receptacle	USB 2.0	Copper Alloy	1 A 1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - mini B USB 2.0 Receptacle Connector 5 Position Through Hole
