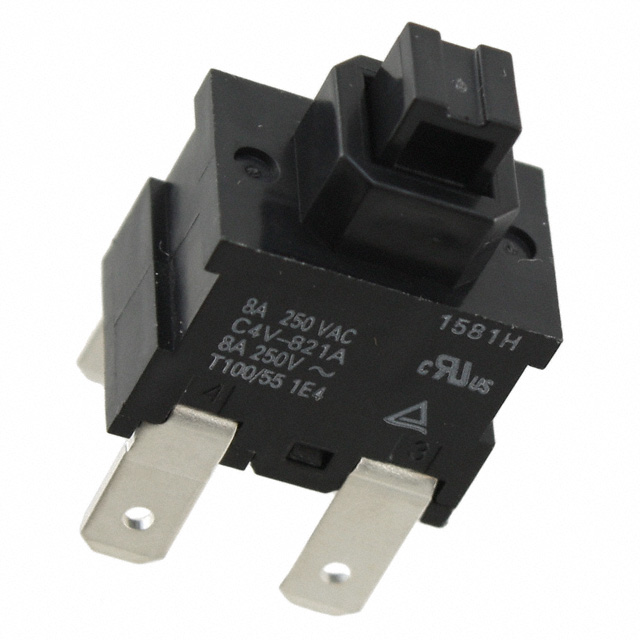

C4V-821A
ActiveOmron Electronics Inc-EMC Div
SWITCH PUSHBUTTON DPST 8A 125V
Deep-Dive with AI
Search across all available documentation for this part.
C4V-821A
ActiveOmron Electronics Inc-EMC Div
SWITCH PUSHBUTTON DPST 8A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C4V-821A |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger, Square |
| Circuit | DPST |
| Current Rating (Amps) | 8 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Side |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Switch Function | Off-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Standard |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.18 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.69 | |||
| 40 | $ 2.59 | |||
| 100 | $ 2.47 | |||
| 300 | $ 2.42 | |||
Description
General part information
C4V Series
Pushbutton Switch DPST Standard Panel Mount, Side
