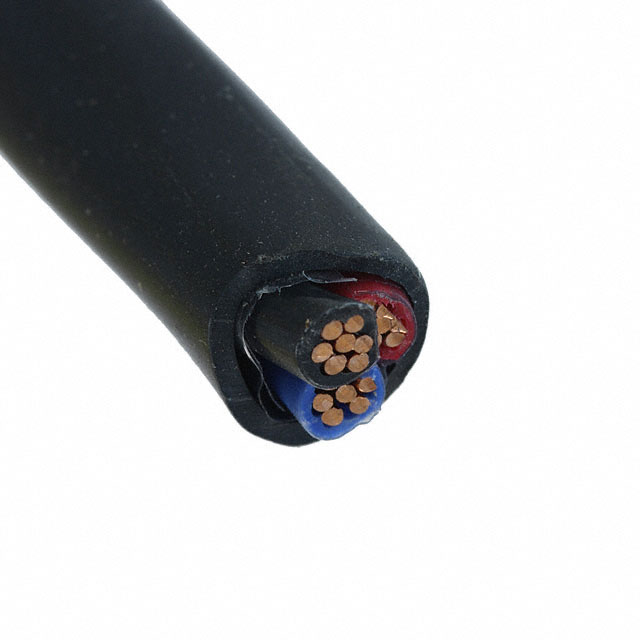

M3867 BK002

Active

ALPHA WIRE

CABLE 3COND 12AWG BLACK

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 12AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	M3867 BK002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	0.0305 in
Conductor Strand [custom]	7
Features	Direct Burial
Jacket (Insulation) Diameter [diameter]	9.8 mm
Jacket (Insulation) Diameter [diameter]	0.386 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Voltage	600 V
Wire Gauge	12 AWG

Part	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Voltage	Conductor Insulation
ALPHA WIRE M3867 BK002	Multi-Conductor	90 °C	-25 °C	12 AWG	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	0.0305 in	7	Direct Burial	Black	9.8 mm	0.386 in	Copper Bare	1.194 mm	0.047 in	3	600 V	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.44

General part information

3 Conductor Multi-Conductor Cable Black 12 AWG 500.0' (152.4m)
