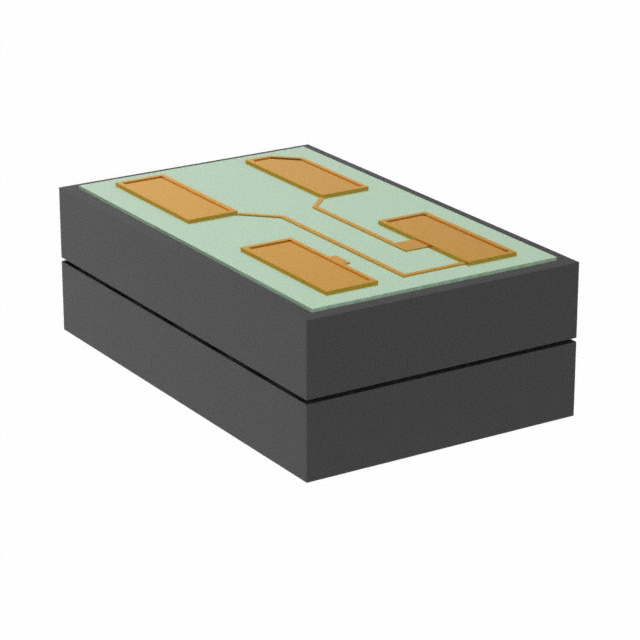

WMRAG32K76CS4C00R0
ObsoleteMurata Power Solutions Inc.
PARALLEL - FUNDAMENTAL QUARTZ CRYSTAL,
Deep-Dive with AI
Search across all available documentation for this part.
WMRAG32K76CS4C00R0
ObsoleteMurata Power Solutions Inc.
PARALLEL - FUNDAMENTAL QUARTZ CRYSTAL,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WMRAG32K76CS4C00R0 |
|---|---|
| ESR (Equivalent Series Resistance) | 75 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] | 0.014 in |
| Height - Seated (Max) [Max] | 0.35 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.95 mm |
| Size / Dimension [x] | 0.037 in |
| Size / Dimension [y] | 0.6 mm |
| Size / Dimension [y] | 0.024 " |
| Type | MEMS |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WMRAG Series
32.768 kHz ±20ppm Crystal 8pF 75 kOhms 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
