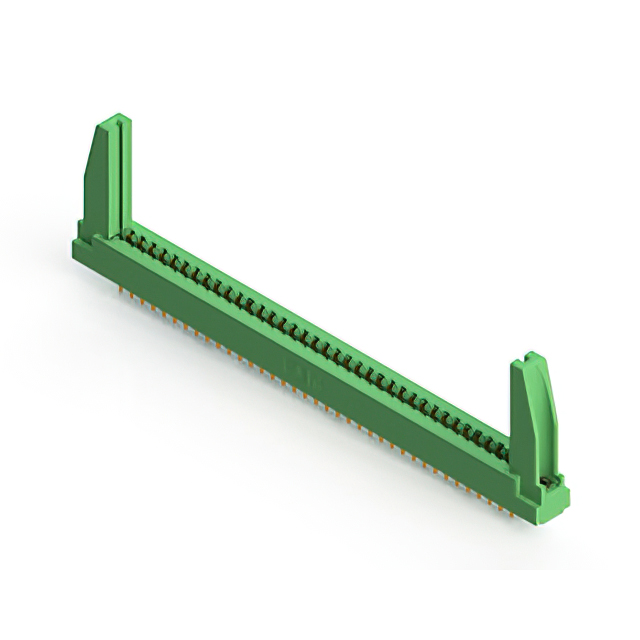

305-074-520-578
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
305-074-520-578
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-074-520-578 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-074 Series
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Termination | Pitch [x] | Pitch [x] | Contact Finish | Gender | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Number of Rows | Contact Material | Flange Feature | Material - Insulation | Termination Rows | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | Card Extender | 37 | 37 | 37 | Dual | 2 | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | ||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Panel Mount Through Hole | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Panel Mount Through Hole | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Panel Mount Through Hole | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Panel Mount Through Hole | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | Floating Bobbin Flush Mount | Polyester Thermoplastic | 2 | Panel Mount Through Hole | 0.116 in | 2.95 mm | |
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | Card Extender | 37 | 37 | 37 | Dual | 2 | Copper Alloy | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | |||
EDAC Inc. | Green | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 74 | Solder | 0.156 in | 3.96 mm | Gold | Female | Semi Bellows | 10 Áin | 0.25 Ám | 37 | 37 | 37 | Dual | 2 | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | 2 | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.64 | |
Description
General part information
305-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
