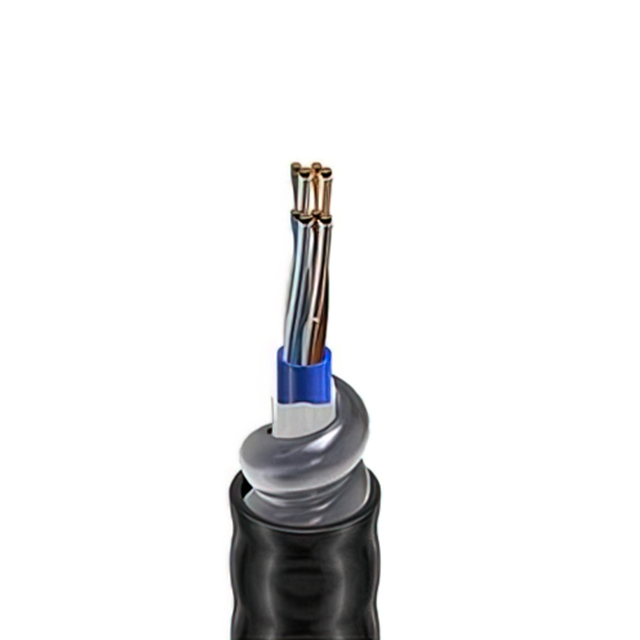

121700A 0103000

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	121700A 0103000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Rip Cord
Jacket (Insulation) Diameter [diameter]	14.05 mm
Jacket (Insulation) Diameter [diameter]	0.553 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	914.4 m
Length	3000 ft
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Conductor Material	Length	Length	Conductor Strand	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Number of Conductors	Usage	Features	Cable Type	Conductor Insulation
Belden Inc. 121700A 0103000	14.05 mm	0.553 "	-40 °C	75 ░C	24 AWG	Copper Bare	914.4 m	3000 ft	Solid	Black	Poly-Vinyl Chloride (PVC)	1.143 mm	0.045 in	300 V	8	Industrial Network	Oil Resistant Rip Cord UV Resistant	Multi-Pair Cat5e	Polyolefin (PO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3000	$ 7.62

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 3000' (914.4m)
