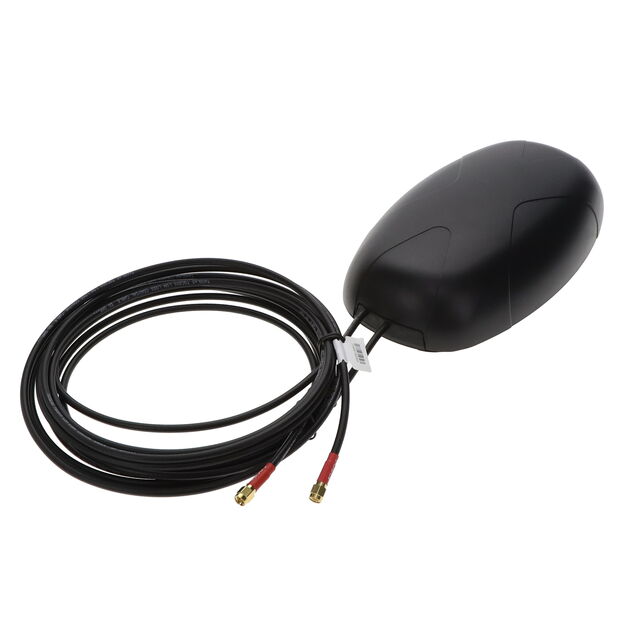

MA351.A.BI.001
ActiveTAOGLAS
3IN1 MAGNET MNT ANT 3M SMA(M)
Deep-Dive with AI
Search across all available documentation for this part.
MA351.A.BI.001
ActiveTAOGLAS
3IN1 MAGNET MNT ANT 3M SMA(M)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA351.A.BI.001 |
|---|---|
| Antenna Type | Module |
| Applications | LTE, 4G, HSPA, HSPA+, 5G, WCDMA, 3G, Wi-Fi |
| Features | Cable |
| Features | 3 m |
| Frequency (Center/Band) | 3.75 GHz, 657.5 MHz, 1.955 GHz, 2.495 GHz, 892 MHz, 5.5375 GHz, 1.4725 GHz, 752 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 698 MHz, 4.2 GHz, 2.2 GHz, 2.69 GHz, 806 MHz, 5.925 GHz, 1.518 GHz, 960 MHz |
| Frequency Range [Min] | 3.3 GHz, 2.3 GHz, 1.427 GHz, 617 MHz, 1.71 GHz, 5.15 GHz, 824 MHz, 698 MHz |
| Gain | 1.1 dBi, 6.9 dB, 5 dBi, 3.3 dBi, 3.5 dBi, 5.9 dBi, 6.6 dBi, 5.1 dBic |
| Height (Max) | 47.78 mm |
| Height (Max) [Max] | 1.881 in |
| Ingress Protection | IP65 |
| Mounting Type | Magnetic |
| Number of Bands | 8 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular, WiFi |
| Termination | SMA Male (2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 181.94 | |
Description
General part information
MA351 Series
RF ANTENNA 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA, Wi-Fi Module SMA Male (2) Magnetic
Documents
Technical documentation and resources
No documents available
