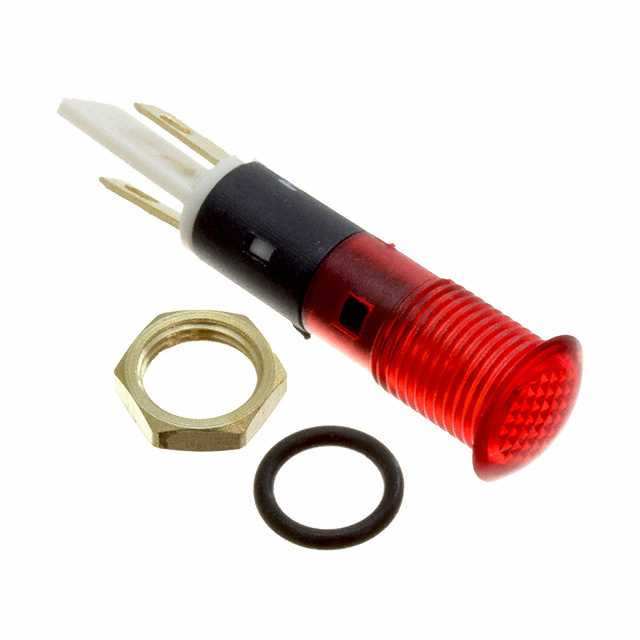

FL1P-8NJ-1-R12V

Active

Mallory Sonalert Products Inc.

LED RED 8MM NUT 12VAC/DC STK

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

LED RED 8MM NUT 12VAC/DC STK

Technical Specifications

Parameters and characteristics for this part

Part	Voltage	Lens Size [diameter]	Panel Cutout Shape	Viewing Angle	Type	Lamp Color	Termination Style	Current	Ingress Protection	Millicandela Rating [Max]	Millicandela Rating [Min]	Ratings	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Lens Size	Lens Size
Mallory Sonalert Products Inc. FL1P-8QW-1-G110V	110 V	9.1 mm	Round	60 °	LED	Green	Wire Leads - 7.3" (185.42mm)	15 mA	IP50	10000 mcd	8000 mcd	AC/DC	Green	0.31 "	8 mm
Mallory Sonalert Products Inc. FL1P-8NJ-1-R12V	12 V	9.2 mm	Round	35 °	LED	Red	Quick Connect - 0.110" (2.8mm)		IP50	1500 mcd	1000 mcd	AC/DC	Red	0.31 "	8 mm	Round with Domed Top
Mallory Sonalert Products Inc. FL1P-8NW-1-G110V	110 V		Round	60 °	LED	Green	Wire Leads - 7.3" (185.42mm)		IP50	10000 mcd	8000 mcd	AC/DC	Green	0.31 "	8 mm	Round with Domed Top	T-3 1/8	10 mm
Mallory Sonalert Products Inc. FL1P-8NW-1-W24V	24 V		Round		LED	White	Wire Leads - 7.3" (185.42mm)		IP50			AC/DC	White	0.315 in	8 mm	Round with Domed Top	T-3 1/8	10 mm
Mallory Sonalert Products Inc. FL1P-8NJ-1-B3V	3 V	9.2 mm	Round	35 °	LED	Blue	Quick Connect		IP65	3000 mcd	2000 mcd	AC/DC	Blue	0.315 in	8 mm	Round with Domed Top
Mallory Sonalert Products Inc. FL1P-8NW-1-Y48V	48 V		Round	35 °	LED	Yellow	Wire Leads - 7.3" (185.42mm)		IP50	1500 mcd	1000 mcd	AC/DC	Yellow	0.315 in	8 mm	Round with Domed Top	T-3 1/8	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red 35° 12V 20mA Quick Connect - 0.110" (2.8mm)

Technical documentation and resources

No documents available
