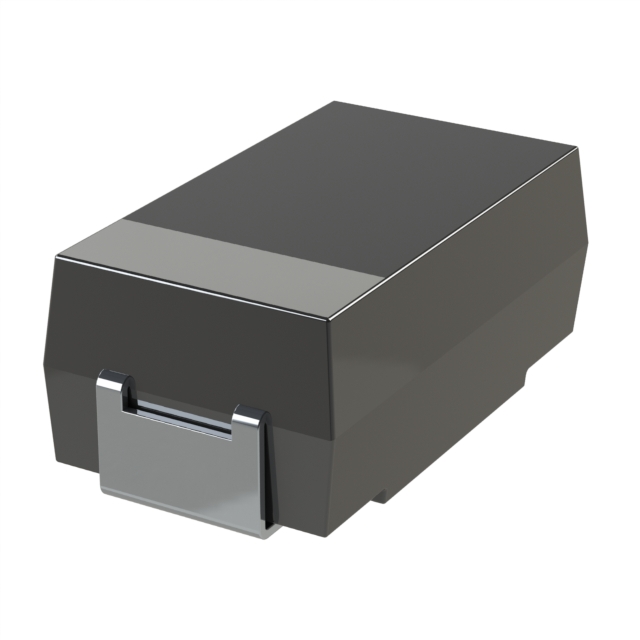

TCJD335M125R0250E

Active

Kyocera AVX

CAP TANT POLY 3.3UF 125V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPolymer, Tantalum, Niobium Oxide Catalog Datasheet

TCJD335M125R0250E

Active

Kyocera AVX

CAP TANT POLY 3.3UF 125V 2917

Deep-Dive with AI

DocumentsPolymer, Tantalum, Niobium Oxide Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCJD335M125R0250E

Capacitance	3.3 µF
ESR (Equivalent Series Resistance)	250 mOhm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	125 V

TCJD Series

...

Part	Manufacturer Size Code	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Voltage - Rated	ESR (Equivalent Series Resistance)	Mounting Type	Lifetime @ Temp.	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Package / Case	Tolerance
Kyocera AVX TCJD107M025R0055E	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	100 µF	25 VDC	55 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD685M075R0120	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.8 ÁF	75 V	120 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD477M004R0012	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	4 V	12 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD227M010R0050E	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	220 µF	10 V	50 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD157M016R0050E	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	150 µF	16 V	50 mOhm	Surface Mount	2000 Hrs	General Purpose	85 °C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD477M002S0050	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	2.5 V	50 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD335M125R0250E	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	3.3 µF	125 V	250 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD685M063R0120E	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	6.8 ÁF	63 V	120 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD477M002R0050E	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	2.5 V	50 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %
Kyocera AVX TCJD477M004S0050	D	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	470 µF	4 V	50 mOhm	Surface Mount	2000 Hrs	General Purpose	105 ░C	-55 °C	Molded	7343 Metric	2917	20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.99
		10	$ 3.43
		50	$ 3.11
		100	$ 2.57
	Digi-Reel®	1	$ 3.99
		10	$ 3.43
		50	$ 3.11
		100	$ 2.57
	Tape & Reel (TR)	500	$ 2.24
		1000	$ 2.08
		2500	$ 2.04
		5000	$ 2.00

Description

General part information

TCJD Series

3.3 µF Molded Tantalum Polymer Capacitor 125 V 2917 (7343 Metric) 250mOhm @ 100kHz
