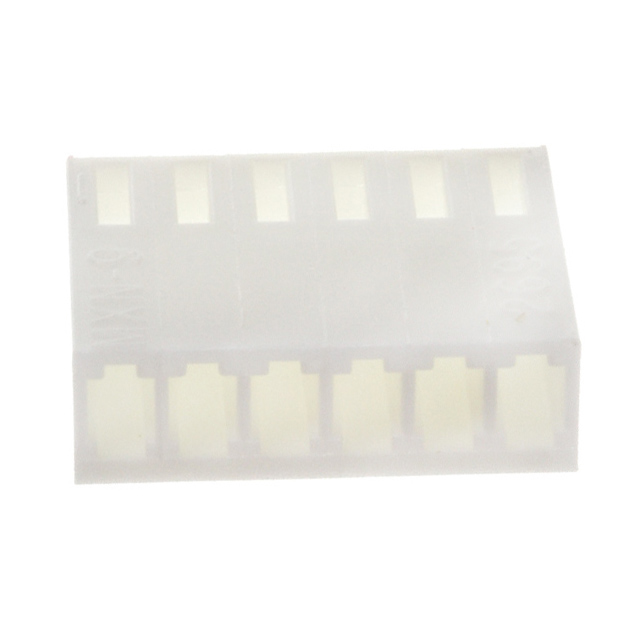

0022012061

Active

Molex

CONN RCPT HSG 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022012061

Active

Molex

CONN RCPT HSG 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022012061

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Non-Gendered
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

002201 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Number of Rows	Insulation Material	Number of Positions	Fastening Type	Color	Pitch [x]	Pitch [x]	Contact Termination	Note	Connector Type	Number of Positions	Features
Molex 0022012087	-40 °C	105 ░C	Non-Gendered	Free Hanging (In-Line)	1	Nylon Polyamide (PA)	8	Locking Ramp	White	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle
Molex 0022012066			Non-Gendered	Free Hanging (In-Line)	1		6		Natural	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle
Molex 0022012032
Molex 0022012111	-40 °C	105 ░C	Non-Gendered	Free Hanging (In-Line)	1	Nylon Polyamide (PA)	11		White	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle
Molex 0022012167	-40 °C	105 ░C	Non-Gendered	Free Hanging (In-Line)	1	Nylon Polyamide (PA)		Locking Ramp	White	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle	16
Molex 0022011112			Non-Gendered	Free Hanging (In-Line)	1		11		Natural	2.5 mm	0.098 in	Crimp	Contacts Not Included	Receptacle		Polarizing Key
Molex 0022012147	-40 °C	105 ░C	Non-Gendered	Free Hanging (In-Line)	1	Nylon Polyamide (PA)	14	Locking Ramp	White	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle
Molex 0022011032	-40 °C	105 ░C	Non-Gendered	Free Hanging (In-Line)	1	Polyamide (PA66) Nylon 6/6			Natural	2.5 mm	0.098 in	Crimp	Contacts Not Included	Receptacle		Polarizing Key
Molex 0022012061	-40 °C	105 ░C	Non-Gendered	Free Hanging (In-Line)	1	Nylon Polyamide (PA)	6		White	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle
Molex 0022012195			Non-Gendered	Free Hanging (In-Line)	1		19		Natural	2.54 mm	0.1 in	Crimp	Contacts Not Included	Receptacle		Polarizing Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.34
		10	$ 0.25
		25	$ 0.23
		50	$ 0.21
		100	$ 0.19
		250	$ 0.18
		500	$ 0.16
		1000	$ 0.16

Description

General part information

002201 Series

6 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)
