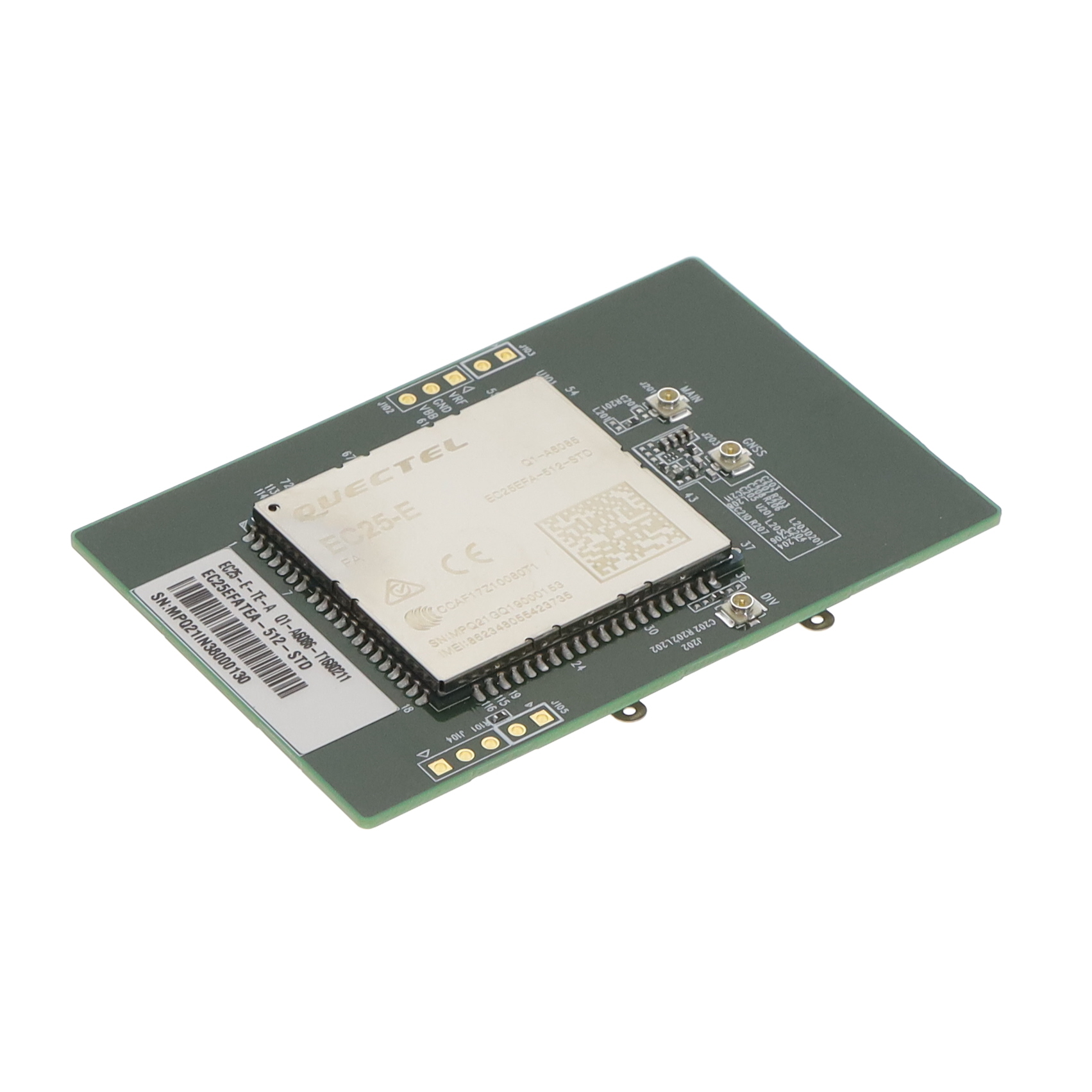

EC25EFATEA-512-STD
ActiveQuectel
RF TXRX MOD CEL/NAV CARD
Deep-Dive with AI
Search across all available documentation for this part.
EC25EFATEA-512-STD
ActiveQuectel
RF TXRX MOD CEL/NAV CARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC25EFATEA-512-STD |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 480 Mbps |
| Frequency | 1800 MHz, 900 MHz, 1.575 GHz, 1.561 GHz, 1.602 GHz |
| Modulation | 8PSK, 16QAM, 64QAM, GMSK |
| Mounting Type | Card Edge |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Power - Output | 33 dBm |
| Protocol | WCDMA, GPS, LTE, Beidou, GLONASS, GSM, GNSS, EDGE, Galileo |
| RF Family/Standard | Cellular, Navigation |
| Sensitivity | -110.5 dBm |
| Serial Interfaces | USB, I2C, PCM, UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 62.50 | |
Description
General part information
EC25 Series
Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, WCDMA Transceiver Module 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz Antenna Not Included Card Edge
Documents
Technical documentation and resources
No documents available
