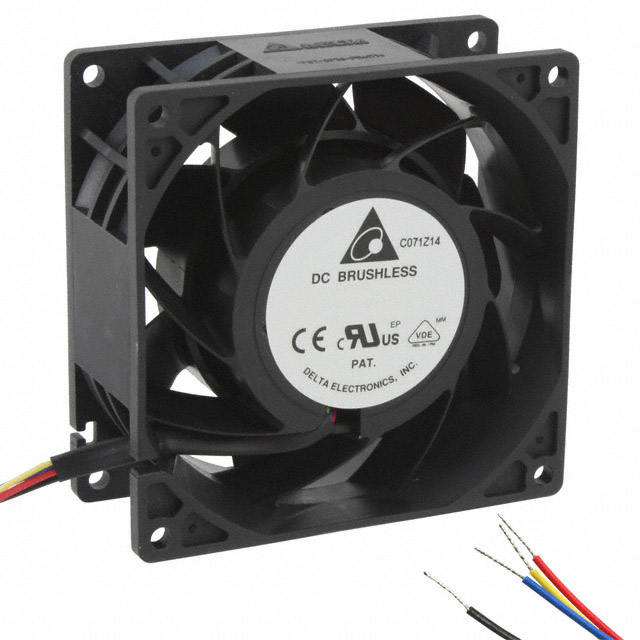

TFA0948AE

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	TFA0948AE

Air Flow	67.1 CFM
Air Flow	1.88 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49.8 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	5000 RPM
Static Pressure	179.3 Pa
Static Pressure	0.72 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	62 VDC
Voltage Range [Min]	28 V
Weight	210.01 g
Weight	0.463 lb
Width [y]	38 mm

Part	Termination	Bearing Type	Current Rating (Amps)	Noise	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Material - Frame	Material - Blade	Air Flow	Air Flow	Static Pressure	Static Pressure	Width [y]	Voltage - Rated [custom]	RPM	Features	Approval Agency	Ingress Protection
Delta Electronics TFA0948AE	4 Wire Leads	Ball	120 mA	49.8 dB(A)	28 V	62 VDC	210.01 g	0.463 lb	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	Plastic	Plastic	67.1 CFM	1.88 m³/min	179.3 Pa	0.72 in H2O	38 mm	48 VDC	5000 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE
Delta Electronics TFA0948AE-EP	4 Wire Leads	Ball	120 mA	49.5 dB	36 VDC	57 VDC	250.84 g	0.553 lb	Tubeaxial					70000 Hrs	Plastic	Plastic	67.6 CFM	1.89 m³/min	172.1 Pa	0.691 in H2O	38 mm	48 VDC	5000 RPM	GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE cURus VDE	IP56 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 67.1 CFM (1.88m³/min) 4 Wire Leads
