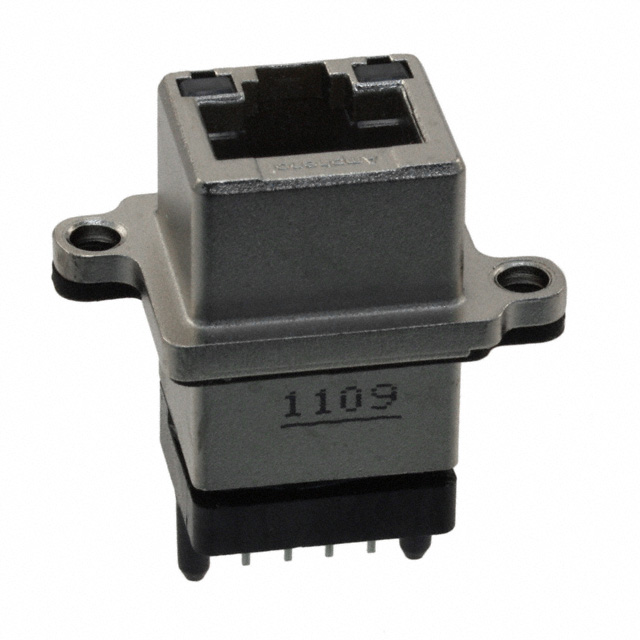

MRJ-5480-01
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRJ-5480-01
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT UNSHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRJ-5480-01 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Panel Mount, Flange (2 Hole), Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Vertical |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.16 | |
| 10 | $ 8.63 | |||
| 25 | $ 8.95 | |||
| 36 | $ 7.89 | |||
| 40 | $ 8.72 | |||
| 72 | $ 7.51 | |||
| 80 | $ 8.49 | |||
| 108 | $ 7.30 | |||
| 240 | $ 7.58 | |||
| 252 | $ 6.88 | |||
| 440 | $ 7.12 | |||
| 504 | $ 6.55 | |||
| 960 | $ 6.29 | |||
| 1008 | $ 6.24 | |||
Description
General part information
MRJ548 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded
