M3933/16-01S

Active

Amphenol SV Microwave

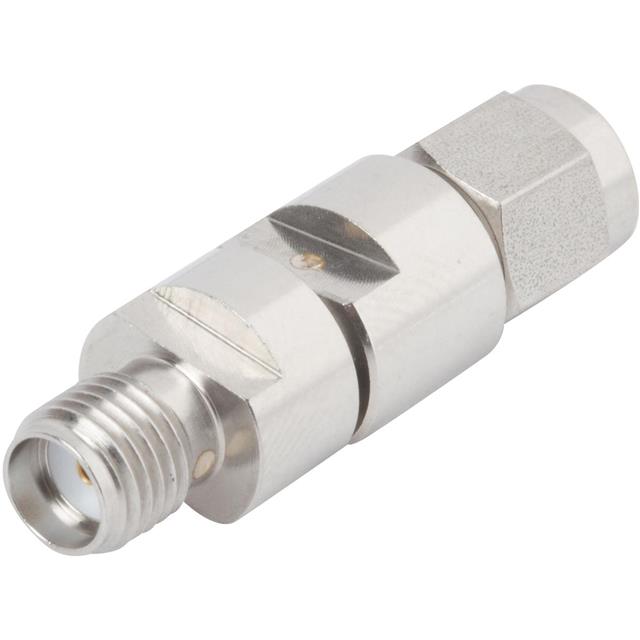

RF ATTENUATOR 3DB 50OHM SMA

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF ATTENUATOR 3DB 50OHM SMA

Technical Specifications

Parameters and characteristics for this part

...

Part	Frequency Range [Max]	Impedance	Power (Watts)	Package / Case	Attenuation Value [custom]	Attenuation Value
Amphenol SV Microwave M3933/25-43N	18 GHz	50 Ohms	2 W	SMA In-Line Module	17 dB
Amphenol SV Microwave M3933/25-63S	18 GHz	50 Ohms	2 W	SMA In-Line Module	2.5 dB
Amphenol SV Microwave M3933/16-03N	18 GHz	50 Ohms	2 W	SMA In-Line Module		10 dB
Amphenol SV Microwave M3933/16-21S	18 GHz	50 Ohms	2 W	SMA In-Line Module	4.5 dB
Amphenol SV Microwave M3933/25-05N	18 GHz	50 Ohms	2 W	SMA In-Line Module
Amphenol SV Microwave M3933/25-82N	18 GHz	50 Ohms	2 W	SMA In-Line Module	14 dB
Amphenol SV Microwave M3933/25-58N	18 GHz	50 Ohms	2 W	SMA In-Line Module	0 dB
Amphenol SV Microwave M3933/16-01S	18 GHz	50 Ohms	2 W	SMA In-Line Module	3 dB
Amphenol SV Microwave M3933/30-33S	32 GHz	50 Ohms	2 W	SMA In-Line Module		20 dB
Amphenol SV Microwave M3933/16-27N	18 GHz	50 Ohms	2 W	SMA In-Line Module		10.5 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Attenuators 3dB 0 Hz ~ 18 GHz 50 Ohms 2W SMA In-Line Module

Technical documentation and resources
