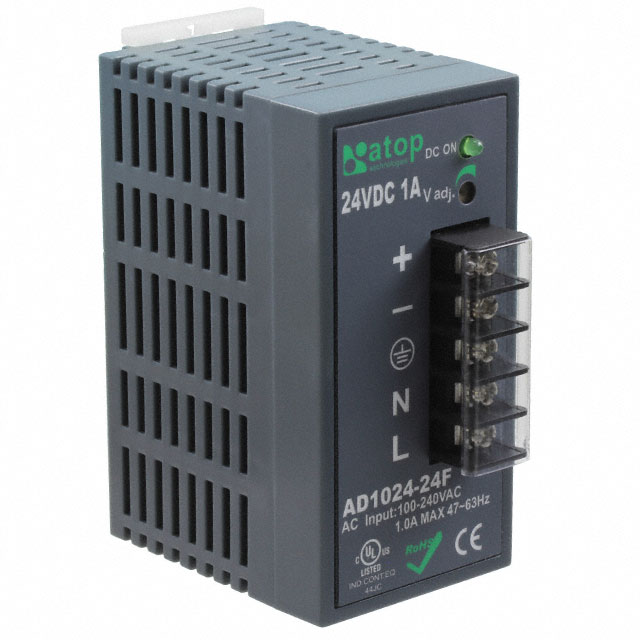

AD1024-24F
ActiveATOP Technologies
AC/DC DIN RAIL SUPPLY 24V 24W
Deep-Dive with AI
Search across all available documentation for this part.
AD1024-24F
ActiveATOP Technologies
AC/DC DIN RAIL SUPPLY 24V 24W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AD1024-24F |
|---|---|
| AC Voltage - Input [Max] | 240 VAC |
| AC Voltage - Input [Min] | 100 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 1 A |
| DC Voltage - Input (Max) [Max] | 370 V |
| DC Voltage - Input (Min) [Min] | 120 V |
| Efficiency | 83 % |
| Features | Adjustable Output |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 24 W |
| Size / Dimension [x] | 2.97 in |
| Size / Dimension [x] | 75.5 mm |
| Size / Dimension [y] | 45 mm |
| Size / Dimension [y] | 1.77 " |
| Size / Dimension [z] | 96 mm |
| Size / Dimension [z] | 3.78 " |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.00 | |
Description
General part information
AD1024 Series
AC/DC DIN RAIL SUPPLY 24V 24W
