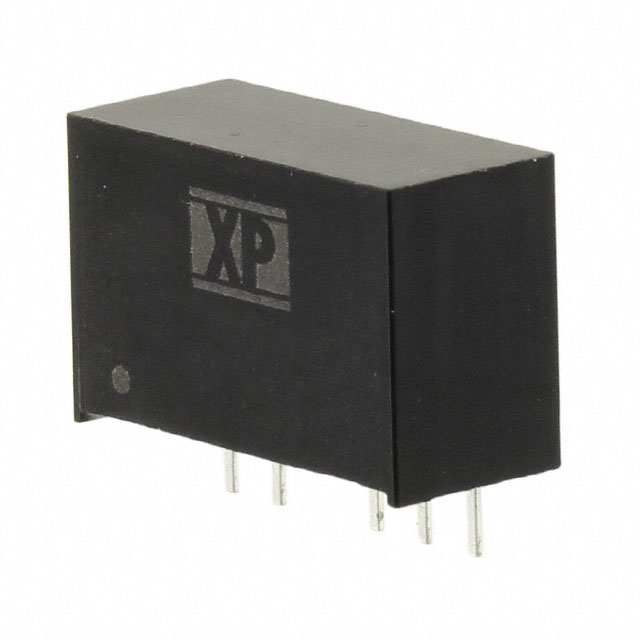

ITW0515S

Active

XP POWER

DC DC CONVERTER +/-15V 1W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER +/-15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Standard Number	Package / Case	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Applications	Current - Output (Max)	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Mounting Type	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]
XP POWER ITW0515S	Isolated Module	11 mm	17 mm	0.3 "	7.6 mm	0.43 "	0.67 in	1.5 kV	62368-1	6-SIP Module 5 Leads	15 V	79 %	9 V	ITE (Commercial)	33 mA	-15 V	85 °C	-40 °C	2	Through Hole	4.5 V	SCP
XP POWER ITW0515SA	Isolated Module	11 mm	17 mm	0.3 "	7.6 mm	0.43 "	0.67 in	1.5 kV	62368-1	6-SIP Module 4 Leads	15 V	79 %	9 V	ITE (Commercial)			85 °C	-40 °C	1	Through Hole	4.5 V	SCP	67 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 10.34

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 9V Input
