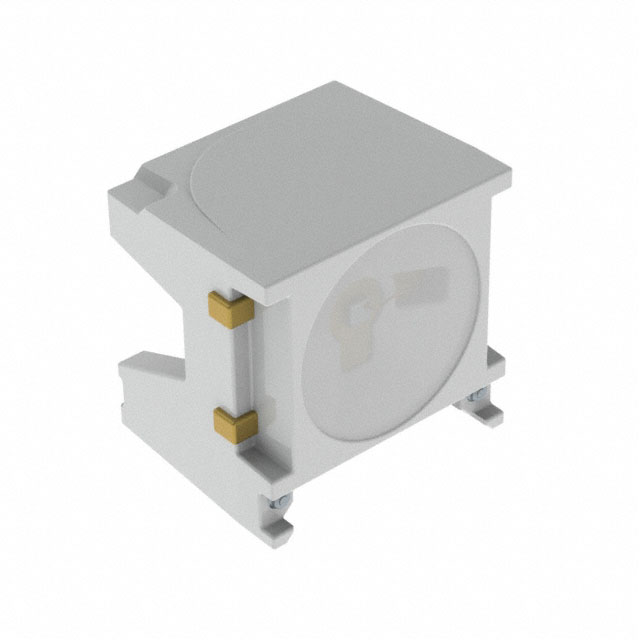

LR B6SP-CADB-1-1
Activeams-OSRAM USA INC.
LED RED CLEAR 2PLCC SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LR B6SP-CADB-1-1
Activeams-OSRAM USA INC.
LED RED CLEAR 2PLCC SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LR B6SP-CADB-1-1 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 140 mA |
| Height (Max) [Max] [z] | 4.7 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 3.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 495 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 4.8 mm |
| Size / Dimension [y] | 3.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 623 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LRB6SP Series
Red 623nm LED Indication - Discrete 2.1V 2-PLCC
