CDFR17W2113L261

Active

MH Connectors

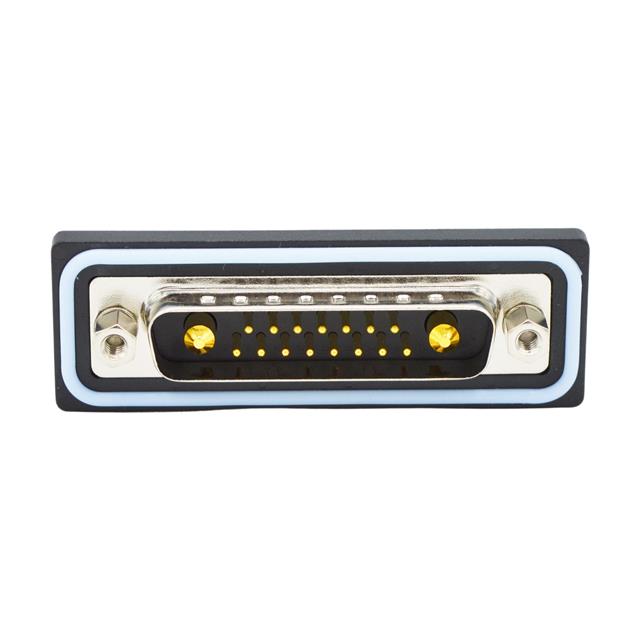

CONN D-SUB PLUG 17POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFR17W2113L261

Active

MH Connectors

CONN D-SUB PLUG 17POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFR17W2113L261

Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder

CDFR17W Series

Part	Contact Finish	Shell Material, Finish	Termination	Dielectric Material	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Features	Contact Material	Material Flammability Rating	Contact Finish Thickness	Ingress Protection	Contact Type	Connector Style	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness
MH Connectors CDFR17W2113L461	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0	Flash	IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side
MH Connectors CDFR17W2113L261	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0	Flash	IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side
MH Connectors CDFR17W2113L211	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Grounding Indents	Brass	UL94 V-0	Flash	IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side
MH Connectors CDFR17W2113L412	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Grounding Indents	Brass	UL94 V-0		IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin
MH Connectors CDFR17W2113L411	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Grounding Indents	Brass	UL94 V-0	Flash	IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side
MH Connectors CDFR17W2113L212	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Grounding Indents	Brass	UL94 V-0		IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin
MH Connectors CDFR17W2213L261	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Receptacle Female Sockets	2	Board Lock Mounting Brackets	Brass	UL94 V-0	Flash	IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side
MH Connectors CDFR17W2213L262	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Receptacle Female Sockets	2	Board Lock Mounting Brackets	Brass	UL94 V-0		IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin
MH Connectors CDFR17W2113L262	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0		IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin
MH Connectors CDFR17W2113L462	Gold	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	17W2 3 (DB B)	-25 °C	85 °C	Male Pins Plug	2	Board Lock Grounding Indents Mounting Brackets	Brass	UL94 V-0		IP67 - Dust Tight Waterproof	Signal and Power	Combo D-Sub	15	2	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.99
		10	$ 13.87
		25	$ 12.76
		36	$ 15.80
		72	$ 15.05
		108	$ 14.63
		252	$ 13.78
		504	$ 13.12

Description

General part information

CDFR17W Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
