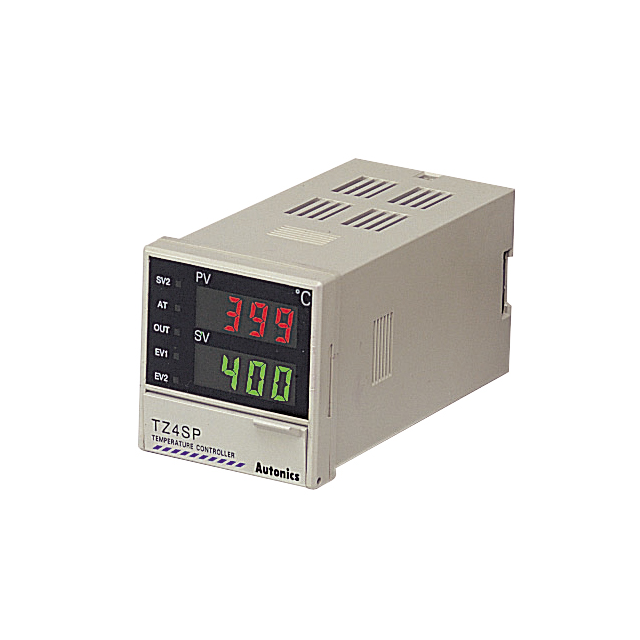

TZ4SP-14R

Active

AUTONICS

PID CONTROL RELAY 100-240VAC

Search across all available documentation for this part.

Active

AUTONICS

PID CONTROL RELAY 100-240VAC

Technical Specifications

Parameters and characteristics for this part

Specification	TZ4SP-14R

Control Method	On/Off, Proportional (PID)
Display Characters - Height	7.8 mm
Display Characters - Height	0.307 in
Display Type	LED - Green, Red Characters
Features	Option Cards Available
Number of Characters Per Row	4
Number of Characters Per Row	4
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Plug In, 11 Pin (Octal)
Type	Temperature Controller (RTD, Type E, J, K, N, R, S, T, W)
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Type	Control Method	Display Characters - Height	Display Characters - Height	Voltage - Supply [Min]	Voltage - Supply [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Number of Characters Per Row	Number of Characters Per Row	Termination Style	Features
AUTONICS TZ4SP-14R	Temperature Controller (RTD Type E J K N R S T W)	On/Off Proportional (PID)	7.8 mm	0.307 in	100 VAC	240 VAC	45 mm	45 mm	LED - Green Red Characters	4	4	Plug In 11 Pin (Octal)	Option Cards Available

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temperature Controller (RTD, Type E, J, K, N, R, S, T, W) 100 ~ 240VAC Panel Mount
