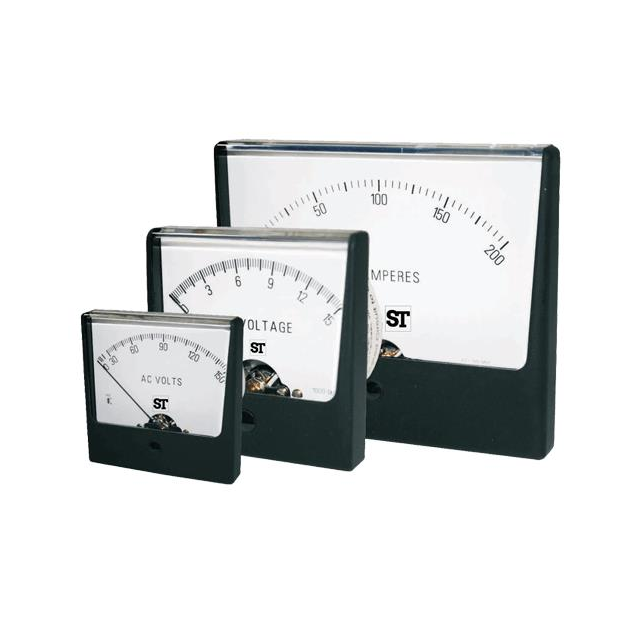

EQ4V-I

Active

Sifam Tinsley Instrumentation Inc

AMMETER 100MA-50A ANALOG PNL MT

Search across all available documentation for this part.

Active

Sifam Tinsley Instrumentation Inc

AMMETER 100MA-50A ANALOG PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	EQ4V-I

Display Characters - Height	0.24 "
Display Characters - Height	6.1 mm
Display Type	Analog - Black Characters
Features	Scaling Meter
Ingress Protection	IP42
Measuring Range [Max]	50 A
Measuring Range [Min]	0.1 A
Measuring Type	Current
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Type	Analog
Panel Cutout Dimensions [diameter]	69.9 mm
Termination Style	Stud
Type	Ammeter
Weight	103.87 g
Weight	0.229 lb

Part	Measuring Type	Termination Style	Measuring Range [Max]	Measuring Range [Min]	Operating Temperature [Max]	Ingress Protection	Output Type	Type	Display Type	Weight	Weight	Panel Cutout Dimensions [diameter]	Display Characters - Height	Display Characters - Height	Features
Sifam Tinsley Instrumentation Inc EQ4V-V	Voltage	Stud	600 VAC	6 VAC	40 °C	IP42	Analog	Voltmeter	Analog - Black Characters
Sifam Tinsley Instrumentation Inc EQ3L-V	Voltage	Stud	600 VAC	6 VAC	40 °C	IP54 - Dust Protected Water Resistant	Analog	Voltmeter	Analog - Black Characters
Sifam Tinsley Instrumentation Inc EQ4V-I	Current	Stud	50 A	0.1 A	40 °C	IP42	Analog	Ammeter	Analog - Black Characters	103.87 g	0.229 lb	69.9 mm	0.24 "	6.1 mm	Scaling Meter
Sifam Tinsley Instrumentation Inc EQ2A-I	Current	Stud	60 A	0.1 A	40 °C	IP42	Analog	Ammeter	Analog - Black Characters
Sifam Tinsley Instrumentation Inc EQ2A-V	Voltage	Stud	600 VAC	6 VAC	40 °C	IP42	Analog	Voltmeter	Analog - Black Characters
Sifam Tinsley Instrumentation Inc EQ2C-V	Voltage	Stud	600 VAC	6 VAC	40 °C		Analog	Voltmeter	Analog - Black Characters
Sifam Tinsley Instrumentation Inc EQ3L-I	Current	Stud	30 A	0.1 A	40 °C	IP54 - Dust Protected Water Resistant	Analog	Ammeter	Analog - Black Characters	100.24 g	0.221 lb	69.9 mm	0.24 "	6.1 mm	Smartlook Analog Panel Meters - ANSI APM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 45.00

General part information

Ammeter Analog - Black Characters Display Panel Mount
