SIT3701AC-42-25F-89.088000Y

SiTime

MEMS OSC VCXO 89.0880MHZ LVCMOS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturing Notes for SiTime Products

SIT3701AC-42-25F-89.088000Y

SiTime

MEMS OSC VCXO 89.0880MHZ LVCMOS

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT3701AC-42-25F-89.088000Y

Base Resonator	MEMS
Frequency Stability	25 ppm
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	LVCMOS, LVTTL

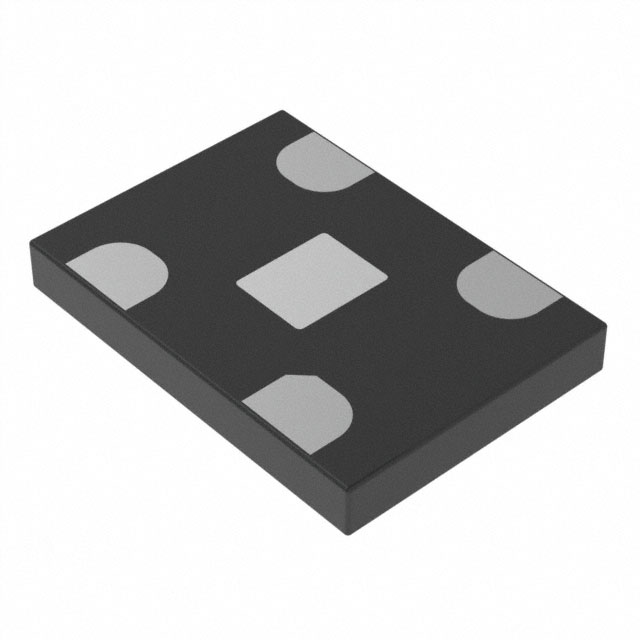

Package / Case	4-SMD, No Lead Exposed Pad
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	VCXO
Voltage - Supply	2.5 V

SIT3701 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Base Resonator	Frequency Stability	Type	Voltage - Supply	Frequency	Output	Package / Case	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
SiTime SIT3701AI-32-33C-74.250000T	85 °C	-40 °C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	25 ppm	VCXO	3.3 V	74.25 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount
SiTime SIT3701AI-22-33F-74.175820T	85 °C	-40 °C	0.8 mm	0.031 "	0.126 in	0.098 in	2.5 mm	3.2 mm	MEMS	25 ppm	VCXO	3.3 V	74.17582 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount
SiTime SIT3701AC-42-25F-89.088000Y	70 °C	-20 C			0.276 "	0.197 "	5 mm	7 mm	MEMS	25 ppm	VCXO	2.5 V		LVCMOS LVTTL	4-SMD No Lead Exposed Pad	Surface Mount	0.039 "	1 mm
SiTime SIT3701AC-31-33C-100.000000T	70 °C	-20 C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	20 ppm	VCXO	3.3 V	100 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount
SiTime SIT3701AI-12-33I-33.554430Y	85 °C	-40 °C	0.8 mm	0.031 "	0.098 "	0.079 in	2 mm	2.5 mm	MEMS	25 ppm	VCXO	3.3 V	33.55443 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount
SiTime SIT3701AI-32-33C-54.000000T	85 °C	-40 °C	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	MEMS	25 ppm	VCXO	3.3 V	54 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount
SiTime SIT3701AC-42-25F-89.088000X	70 °C	-20 C			0.276 "	0.197 "	5 mm	7 mm	MEMS	25 ppm	VCXO	2.5 V		LVCMOS LVTTL	4-SMD No Lead Exposed Pad	Surface Mount	0.039 "	1 mm
SiTime SIT3701AI-12-33F-24.576000T	85 °C	-40 °C	0.8 mm	0.031 "	0.098 "	0.079 in	2 mm	2.5 mm	MEMS	25 ppm	VCXO	3.3 V	24.576 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount
SiTime SIT3701AI-82-33F-40.000000T	85 °C	-40 °C			0.276 "	0.197 "	5 mm	7 mm	MEMS	25 ppm	VCXO	3.3 V	40 MHz	LVCMOS LVTTL	4-SMD No Lead Exposed Pad	Surface Mount	0.039 "	1 mm
SiTime SIT3701AI-12-33I-33.554430T	85 °C	-40 °C	0.8 mm	0.031 "	0.098 "	0.079 in	2 mm	2.5 mm	MEMS	25 ppm	VCXO	3.3 V	33.55443 MHz	LVCMOS LVTTL	4-SMD No Lead	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 4.02
