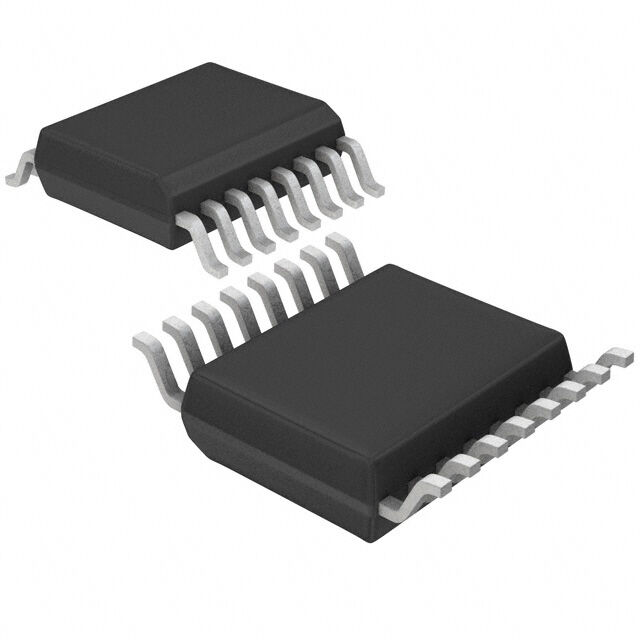

IDT74CBTLV3126QG
ObsoleteRenesas Electronics Corporation
IC BUS SWITCH 1 X 1:1 16-QSOP
Deep-Dive with AI
Search across all available documentation for this part.
IDT74CBTLV3126QG
ObsoleteRenesas Electronics Corporation
IC BUS SWITCH 1 X 1:1 16-QSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IDT74CBTLV3126QG |
|---|---|
| Circuit | 1 x 1:1 |
| Independent Circuits | 4 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.154 in |
| Package / Case | 16-SSOP |
| Package / Case | 3.9 mm |
| Supplier Device Package | 16-QSOP |
| Type | Bus Switch |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
74CBTLV3126 Series
The CBTLV3126 features four independent switches. Each switch is enabled when the associated output-enable (OE) input is high.To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
