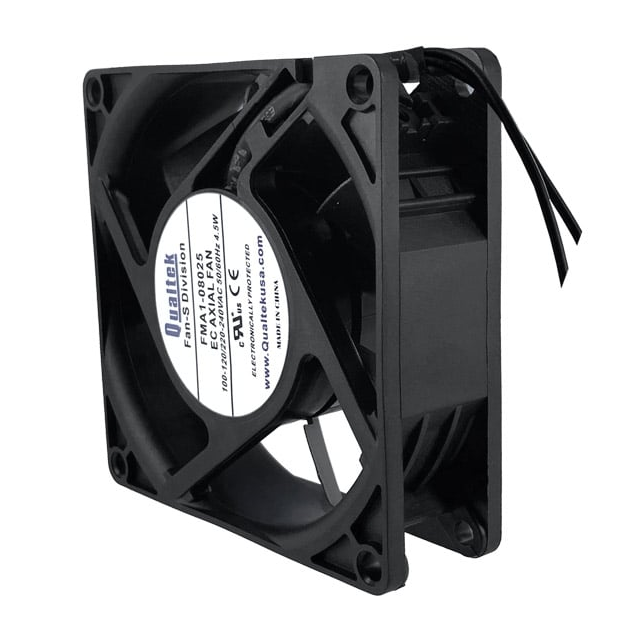

FMA1-08025WBHW12

Active

Qualtek

EC FAN, 80X80X25MM, 2-BALL BEARI

Search across all available documentation for this part.

Active

Qualtek

EC FAN, 80X80X25MM, 2-BALL BEARI

Technical Specifications

Parameters and characteristics for this part

Specification	FMA1-08025WBHW12

Air Flow	1.09 m³/min
Air Flow	38.9 CFM
Approval Agency	CE, cURus
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	31 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	4.5 W
RPM	3500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.247 in H2O
Static Pressure	61.5 Pa
Termination	2 Wire Leads
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Width [y]	25 mm

Part	Features	Voltage - Rated [Min]	Voltage - Rated [Max]	Width [y]	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Current Rating (Amps)	RPM	Termination	Material - Frame	Bearing Type	Noise	Static Pressure	Static Pressure	Lifetime @ Temp.	Power (Watts)	Fan Type	Approval Agency	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]
Qualtek FMA1-08025WBHW12	Electronic Commutation (EC)	100 VAC	240 VAC	25 mm	1.09 m³/min	38.9 CFM	80 mm	80 mm	Plastic	60 mA	3500 RPM	2 Wire Leads	Plastic	Ball	31 dB(A)	0.247 in H2O	61.5 Pa	70000 Hrs	4.5 W	Tubeaxial	CE cURus	IP54 - Dust Protected Water Resistant	-20 °C	70 °C	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 80mm L x 80mm H Ball 38.9 CFM (1.09m³/min) 2 Wire Leads
