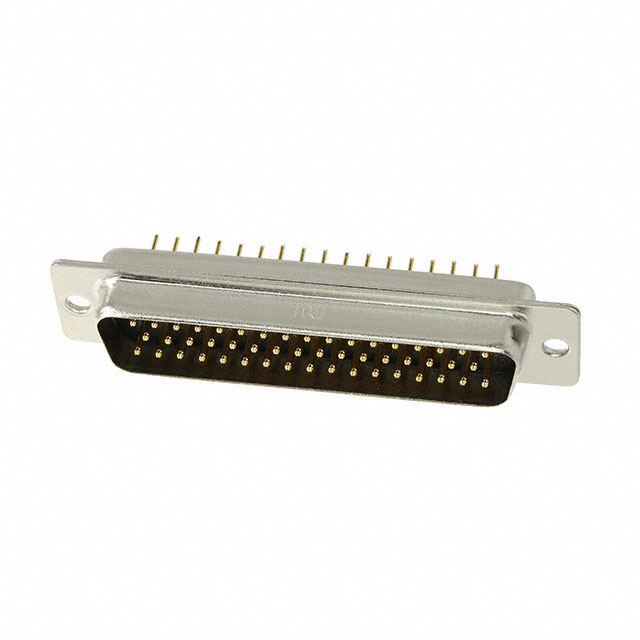

SDDB-50P(55)
ActiveHirose Electric USA, Inc.
D SUBMINIATURE CONNECTOR, 50 CONTACT(S), MALE, SOLDER TERMINAL, LOCKING
Deep-Dive with AI
Search across all available documentation for this part.
SDDB-50P(55)
ActiveHirose Electric USA, Inc.
D SUBMINIATURE CONNECTOR, 50 CONTACT(S), MALE, SOLDER TERMINAL, LOCKING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDDB-50P(55) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 |
| Termination | Solder |
| Voltage Rating | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.85 | |
| 10 | $ 17.61 | |||
| 25 | $ 15.94 | |||
| 40 | $ 15.16 | |||
| 80 | $ 14.11 | |||
| 230 | $ 12.69 | |||
| 440 | $ 11.92 | |||
Description
General part information
SDDB Series
50 Position D-Sub Plug, Male Pins Connector
