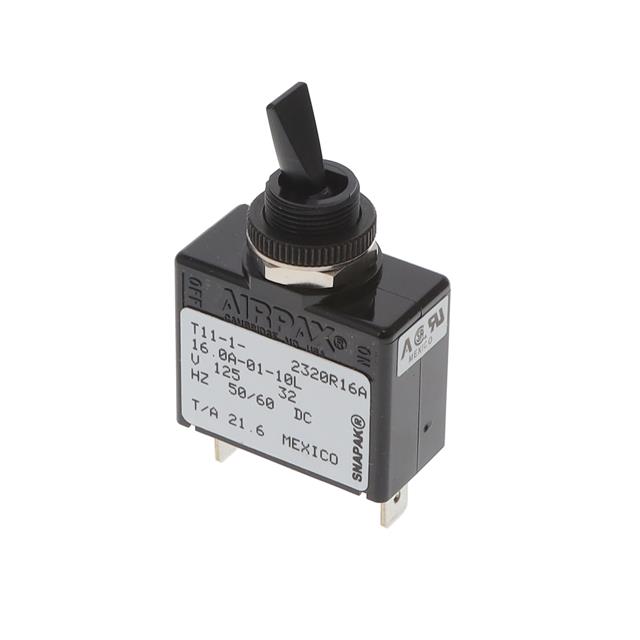

T11-1-16.0A-01-10L

Active

Sensata-Airpax

CIR BRKR MAG-HYDR 16A TOGGLE

Search across all available documentation for this part.

Active

Sensata-Airpax

CIR BRKR MAG-HYDR 16A TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Breaker Type	Actuator Type	Voltage Rating - AC	Illumination	Number of Poles	Voltage Rating - DC
Sensata-Airpax T11-1-3.00A-01-31AL	3 A	Magnetic (Hydraulic Delay)	Toggle	250 V	None	1	65 VDC
Sensata-Airpax T11-1-7.50A-01-20
Sensata-Airpax T11-1-2.00A-02-31	2 A	Magnetic (Hydraulic Delay)	Toggle			1
Sensata-Airpax T11-1-1.00A-01-10AL-V		Magnetic (Hydraulic Delay)	Toggle			1
Sensata-Airpax T11-1-16.0A-01-10L	16 A	Magnetic (Hydraulic Delay)	Toggle			1
Sensata-Airpax T11-1-25.0A-01-10	20 A	Magnetic (Hydraulic Delay)	Toggle	250 V	None	1	65 VDC
Sensata-Airpax T11-1-15.0A-01-10A-V	15 A	Magnetic (Hydraulic Delay)	Toggle			1
Sensata-Airpax T11-1-15.0A-01-20L	15 A	Magnetic (Hydraulic Delay)	Toggle	250 V	None	1	65 VDC
Sensata-Airpax T11-1-20.0A-01-10AL-V	20 A	Magnetic (Hydraulic Delay)	Toggle			1
Sensata-Airpax T11-1-20.0A-01-11C-V	20 A	Magnetic (Hydraulic Delay)	Toggle			1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.61

General part information

Circuit Breaker Magnetic (Hydraulic Delay) 16A AC DC Toggle Panel Mount

Technical documentation and resources
