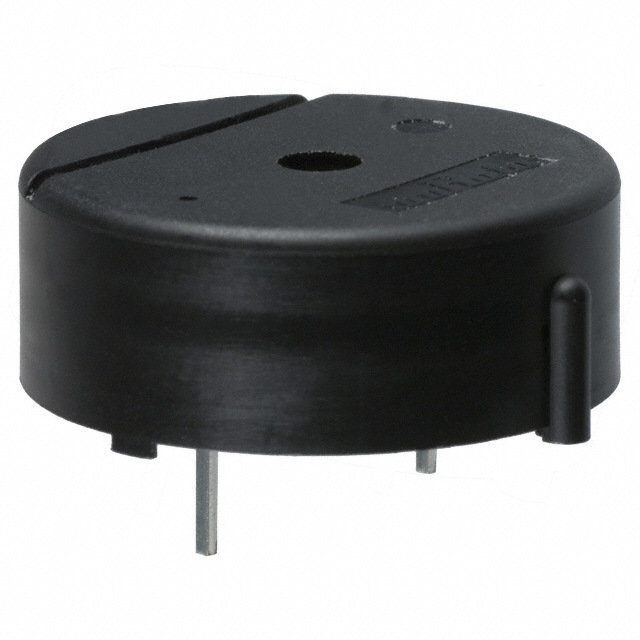

PKB24SPCH3601-B0

Active

Murata Power Solutions Inc.

BUZZER PIEZO 12V 24.3MM TH

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

BUZZER PIEZO 12V 24.3MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	PKB24SPCH3601-B0

Driver Circuitry	Internally Driven, Indicator
Frequency	3.6 kHz
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Sound Pressure Level (SPL)	90 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	3 V

Part	Driver Circuitry	Operating Mode	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Sound Pressure Level (SPL)	Port Location	Voltage - Rated	Termination	Voltage Range [Max]	Voltage Range [Min]	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Technology	Mounting Type
Murata Power Solutions Inc. PKB24SPCH3601-B0	Indicator Internally Driven	Single Tone	-20 C	70 °C	DC	90 dB	Top	12 VDC	PC Pins	15 V	3 V	3.6 kHz	0.394 in	10 mm	Piezo	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Piezo 12 V 3.6kHz 90dB @ 12V, 10cm Through Hole PC Pins
