SCC2692AE1A44,529

Obsolete

Freescale Semiconductor - NXP

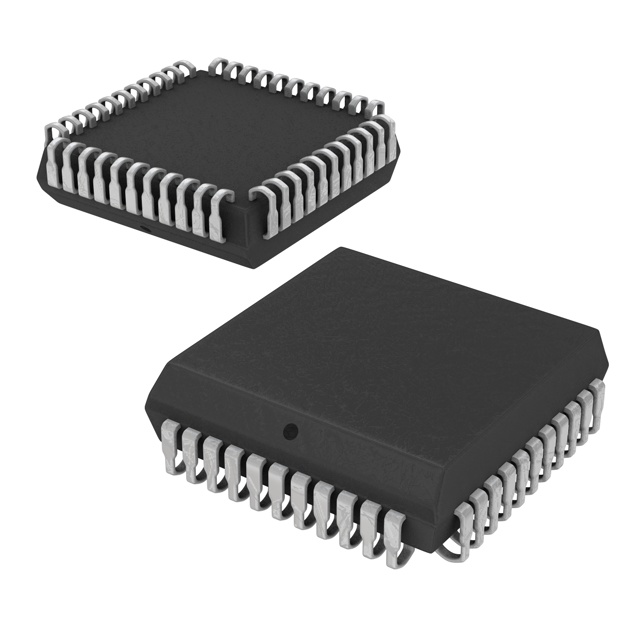

IC DUART DUAL W/FIFO 44-PLCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SCC2692AE1A44,529

Obsolete

Freescale Semiconductor - NXP

IC DUART DUAL W/FIFO 44-PLCC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SCC2692AE1A44,529

Data Rate (Max)	1 Mbps
Features	Configurable GPIO, Internal Oscillator, Timer/Counter
Mounting Type	Surface Mount
Number of Channels	2
Package / Case	44-LCC (J-Lead)
Supplier Device Package	44-PLCC (16.59x16.59)
With Auto Flow Control	True
With False Start Bit Detection	True

SCC26 Series

Part	Supplier Device Package	Features	Package / Case	Number of Channels	Mounting Type	Data Rate (Max)	Number of Channels [custom]	Number of Channels [custom]	Protocol	Package / Case	Package / Case	Package / Case
Freescale Semiconductor - NXP SCC2692AE1A44,529	44-PLCC (16.59x16.59)	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)	2	Surface Mount	1 Mbps
Freescale Semiconductor - NXP SCC2691AC1A28,512	28-PLCC (11.48x11.48)	Configurable GPIO Internal Oscillator Timer/Counter	28-LCC (J-Lead)		Surface Mount		UART	1
Freescale Semiconductor - NXP SCC2692AE1B44,557	44-PQFP (10x10)	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP	2	Surface Mount	1 Mbps
Freescale Semiconductor - NXP SCC2698BC1A84,518	84-PLCC (29.26x29.26)	Configurable GPIO Internal Oscillator Timer/Counter	84-LCC (J-Lead)	8	Surface Mount				RS485
Freescale Semiconductor - NXP SCC2692AE1A44,512	44-PLCC (16.59x16.59)	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)	2	Surface Mount	1 Mbps
Freescale Semiconductor - NXP SCC2692AE1N28,129	28-DIP	Configurable GPIO Internal Oscillator Timer/Counter	28-DIP	2	Through Hole	1 Mbps				0.6 in	15.24 mm
Freescale Semiconductor - NXP SCC2692AC1B44,557	44-PQFP (10x10)	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP	2	Surface Mount	1 Mbps
Freescale Semiconductor - NXP SCC2692AC1N28,602	28-DIP	Configurable GPIO Internal Oscillator Timer/Counter	28-DIP	2	Through Hole	1 Mbps				0.6 in	15.24 mm
Freescale Semiconductor - NXP SCC2698BC1A84,512	84-PLCC (29.26x29.26)	Configurable GPIO Internal Oscillator Timer/Counter	84-LCC (J-Lead)	8	Surface Mount				RS485
Freescale Semiconductor - NXP SCC2691AC1N24,129	24-DIP	Configurable GPIO Internal Oscillator Timer/Counter	24-DIP		Through Hole		UART	1			0.3 in	7.62 mm
