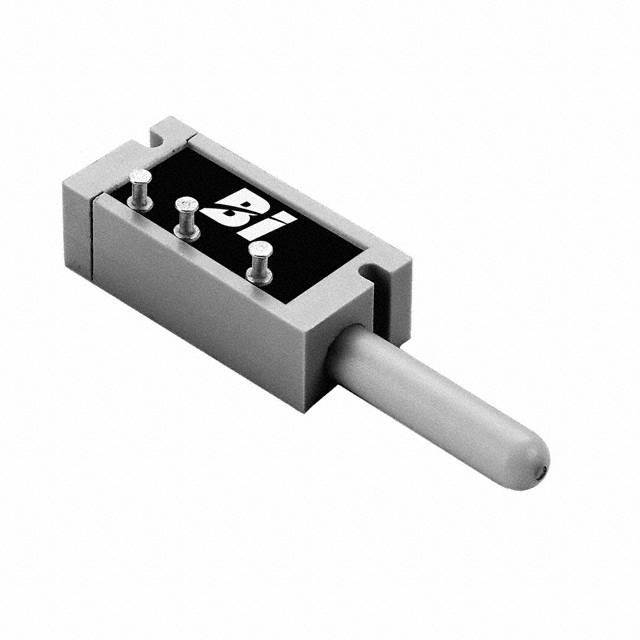

404R1KL1.0
ActiveTT Electronics/BI
SENSOR LINEAR 12.7MM SLD TURRET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
404R1KL1.0
ActiveTT Electronics/BI
SENSOR LINEAR 12.7MM SLD TURRET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 404R1KL1.0 |
|---|---|
| Actuator Type | Round Shaft |
| For Measuring | Linear Position |
| Linear Range [Max] | 0.5 in |
| Linear Range [Max] | 12.7 mm |
| Linear Range [Min] | 0 mm |
| Linear Range [Min] | 0 in |
| Linearity | 1 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Resistive |
| Package / Case | Box with Solder Turrets |
| Resistance | 1000 Ohms |
| Resistance Tolerance | 10% |
| Technology | Resistive |
| Termination Style | Solder Turret |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.90 | |
| 5 | $ 22.78 | |||
| 10 | $ 21.99 | |||
| 30 | $ 20.87 | |||
| 50 | $ 20.40 | |||
| 100 | $ 19.81 | |||
| 500 | $ 18.62 | |||
Description
General part information
404R Series
Resistive Sensor Linear Position Round Shaft Solder Turret
