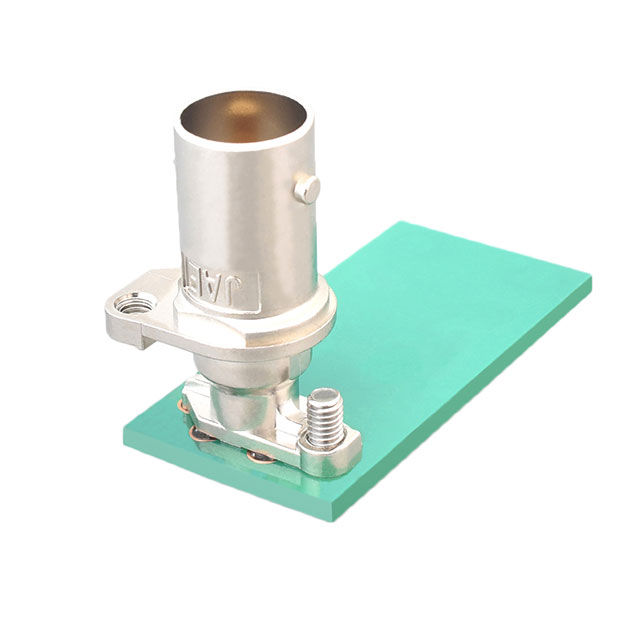

BNC0T101C00

Obsolete

JAE Electronics

12G-SDI BNC COAXIAL 75 OHM

Search across all available documentation for this part.

Obsolete

JAE Electronics

12G-SDI BNC COAXIAL 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	BNC0T101C00

Body Finish	Nickel
Body Material	Zinc Alloy
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Syndiotactic Polystyrene (SPS)
Fastening Type	Bayonet Lock
Features	Board Guide, 12G-SDI
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	5000
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Dielectric Material	Features	Shield Termination	Voltage Rating	Body Finish	Mounting Type	Number of Ports	Impedance	Center Contact Material	Fastening Type	Mating Cycles	Body Material	Connector Style	Contact Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Housing Color	Mounting Feature
JAE Electronics BNC0T101C00	Syndiotactic Polystyrene (SPS)	12G-SDI Board Guide	Solder	250 VDC	Nickel	Panel Mount Right Angle Through Hole	1	75 Ohms	Phosphor Bronze	Bayonet Lock	5000	Zinc Alloy	BNC	Solder	Female Socket Receptacle	85 °C	-40 °C	Gold	Silver	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Receptacle, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
