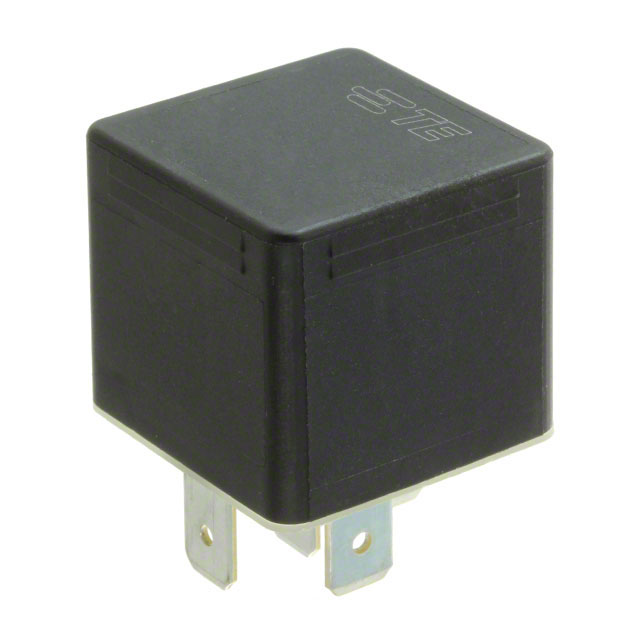

2-1904025-6
ObsoleteTE Connectivity Potter & Brumfield Relays
V23234A0004X055-EV-100
Deep-Dive with AI
Search across all available documentation for this part.
2-1904025-6
ObsoleteTE Connectivity Potter & Brumfield Relays
V23234A0004X055-EV-100
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1904025-6 |
|---|---|
| Coil Current | 94 mA |
| Coil Power | 2.3 W |
| Coil Resistance | 255 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 50 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 16 VDC |
| Must Release Voltage | 3 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 24 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1904025 Series
V23234A0004X055-EV-100
Documents
Technical documentation and resources
No documents available
