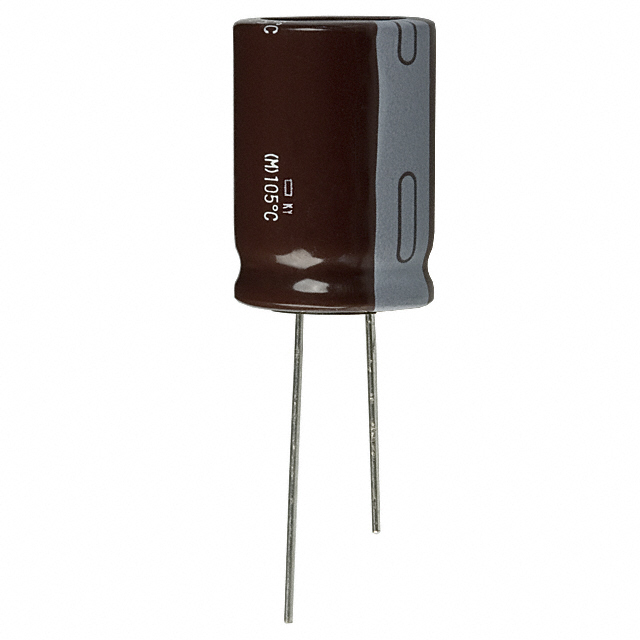

EKY-160ELL472MM25S

Active

Chemi-Con

CAP ALUM 4700UF 20% 16V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-160ELL472MM25S

Active

Chemi-Con

CAP ALUM 4700UF 20% 16V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EKY-160ELL472MM25S

Applications	General Purpose
Capacitance	4700 µF
Height - Seated (Max) [Max] [z]	1.043 in
Height - Seated (Max) [Max] [z]	26.5 mm
Impedance	19 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	3.14 A
Ripple Current @ Low Frequency	2.669 A
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	16 V

EKY-160E Series

Part	Capacitance	Voltage - Rated	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Polarization	Applications	Impedance	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-160ELL472MM25S	4700 µF	16 V	10000 Hrs	1.043 in	26.5 mm	Through Hole	Polar	General Purpose	19 mOhms	3.14 A	7.5 mm	0.295 in	0.709 "	18 mm	Radial Can	2.669 A	-40 °C	105 ░C	20 %
Chemi-Con EKY-160ELL471MH15D	470 µF	16 V	7000 Hrs	16.51 mm	16.5 mm	Through Hole	Polar	General Purpose	87 mOhms	840 mA	3.5 mm	0.138 in	0.315 "	8 mm	Radial Can	420 mA	-40 °C	105 ░C	20 %
Chemi-Con EKY-160ELL392ML25S	3900 µF	16 V	10000 Hrs	1.043 in	26.5 mm	Through Hole	Polar	General Purpose	21 mOhms	2.93 A	7.5 mm	0.295 in	0.63 in	16 mm	Radial Can	2.1975 A	-40 °C	105 ░C	20 %
Chemi-Con EKY-160ELL681MH20D	680 µF	16 V	7000 Hrs			Through Hole	Polar	General Purpose	69 mOhms	1.05 A	3.5 mm	0.138 in	0.315 "	8 mm	Radial Can	630 mA	-40 °C	105 ░C	20 %	21.5 mm	0.846 in
Chemi-Con EKY-160ELL562MMN3S	5.6 mF	16 V	10000 Hrs	1.299 in	33 mm	Through Hole	Polar	General Purpose	15 mOhms		7.5 mm	0.295 in	0.709 "	18 mm	Radial Can	3.5445 A	-40 °C	105 ░C	20 %
Chemi-Con EKY-160ELL560ME11D	56 µF	16 V	5000 Hrs			Through Hole	Polar	General Purpose	580 mOhms	210 mA	2 mm	0.079 in	0.197 "	5 mm	Radial Can	84 mA	-40 °C	105 ░C	20 %	12.5 mm	0.492 in
Chemi-Con EKY-160EC5102MJ20S	1000 µF	16 V	7000 Hrs			Through Hole	Polar	General Purpose		1.4 A	5 mm	0.197 in	0.394 in	10 mm	Radial Can	840 mA	-40 °C	105 ░C	20 %	21.5 mm	0.846 in
Chemi-Con EKY-160ETD221MF11D	220 µF	16 V				Through Hole	Polar	General Purpose			2.5 mm	0.098 in	0.248 in	6.3 mm	Radial Can		-40 °C	105 ░C	20 %	12.5 mm	0.492 in
Chemi-Con EKY-160ELL472MLN3S	4700 µF	16 V	10000 Hrs	1.299 in	33 mm	Through Hole	Polar	General Purpose	17 mOhms	3.45 A	7.5 mm	0.295 in	0.63 in	16 mm	Radial Can	2.9325 A	-40 °C	105 ░C	20 %
Chemi-Con EKY-160ELL332MK35S	3.3 mF	16 V	10000 Hrs	1.437 in	36.5 mm	Through Hole	Polar	General Purpose	20 mOhms	2.88 A	5 mm	0.197 in	0.492 in	12.5 mm	Radial Can	2.16 A	-40 °C	105 ░C	20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.75
		10	$ 1.14
		50	$ 0.88
		100	$ 0.80
		500	$ 0.66
		1000	$ 0.62
		2500	$ 0.57
		5000	$ 0.55

Description

General part information

EKY-160E Series

4700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
