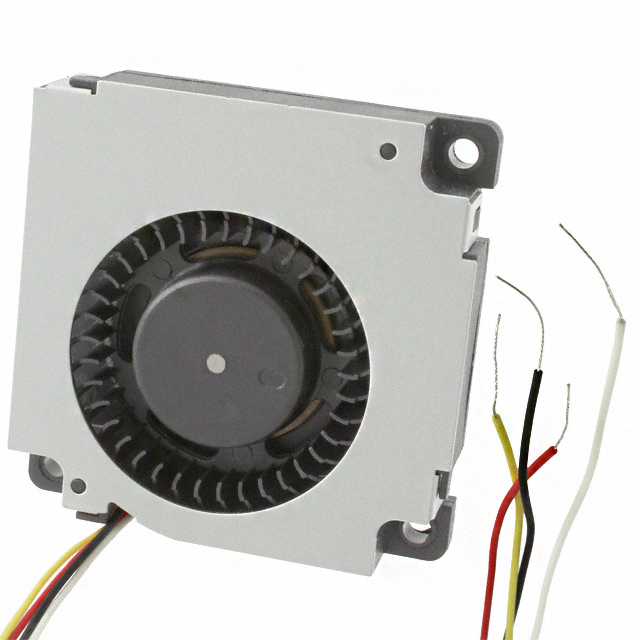

BFB04512HHA-DV52
ActiveDelta Electronics
FAN BLOWER 45X10.3MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
BFB04512HHA-DV52
ActiveDelta Electronics
FAN BLOWER 45X10.3MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BFB04512HHA-DV52 |
|---|---|
| Air Flow | 0.101 m³/min |
| Air Flow | 3.6 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 140 mA |
| Fan Type | Blower |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 3600 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 36 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.68 W |
| RPM | 6100 RPM |
| Size / Dimension [x] | 45 mm |
| Size / Dimension [z] | 45 mm |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.5 VDC |
| Voltage Range [Min] | 5 VDC |
| Weight | 0.04 lb |
| Weight | 18.14 g |
| Width [y] | 10.3 mm |
BFB04512 Series
| Part | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Approval Agency | Air Flow | Air Flow | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | RPM | Lifetime @ Temp. | Noise | Material - Blade | Material - Frame | Features | Power (Watts) | Termination | Weight | Weight | Voltage - Rated | Bearing Type | Fan Type | Static Pressure | Static Pressure | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 10.3 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.101 m³/min | 3.6 CFM | 13.5 VDC | 5 VDC | 140 mA | 6100 RPM | 3600 Hrs | 36 dB | Plastic | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 1.68 W | 4 Wire Leads | 0.04 lb | 18.14 g | 12 VDC | Ball | Blower | |||
Delta Electronics | 10 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.092 m³/min | 3.3 CFM | 13.2 VDC | 7 V | 6500 RPM | 30000 Hrs | 35.5 dB | Plastic | Plastic | Locked Rotor Sensor | 3 Wire Leads | 0.029 lb | 13.15 g | 12 VDC | Ball | Blower | |||||
Delta Electronics | 10.3 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.084 m³/min | 3 CFM | 13.2 VDC | 5 VDC | 5150 RPM | 30000 Hrs | 30.5 dB | Plastic | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 3 Wire Leads | 0.04 lb | 18.14 g | 12 VDC | Ball | Blower | 97.4 Pa | 0.391 in H2O | |||
Delta Electronics | 20 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.118 m³/min | 4.2 CFM | 13.8 VDC | 5 VDC | 70 mA | 3300 RPM | 20000 Hrs | 21 dB(A) | Plastic | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 840 mW | 3 Wire Leads | 0.038 lb | 17.24 g | 12 VDC | Ball | Blower | 67 Pa | 0.269 in H2O | Square/Rounded |
Delta Electronics | 10.3 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.098 mł/min | 3.5 CFM | 13.2 VDC | 5 VDC | 5900 RPM | 30000 Hrs | 35.5 dB | Plastic | Plastic | 1.56 W | 2 Wire Leads | 0.04 lb | 18.14 g | 12 VDC | Ball | Blower | 139.5 Pa | 0.56 in H2O | |||
Delta Electronics | 20 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.137 m³/min | 4.9 CFM | 13.8 VDC | 5 VDC | 100 mA | 3800 RPM | 20000 Hrs | 24.5 dB(A) | Plastic | Plastic | Locked Rotor Sensor | 1.2 W | 3 Wire Leads | 0.038 lb | 17.24 g | 12 VDC | Ball | Blower | 91.2 Pa | 0.366 in H2O | Square/Rounded |
Delta Electronics | |||||||||||||||||||||||||||||
Delta Electronics | 10.3 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.084 m³/min | 3 CFM | 13.2 VDC | 5 VDC | 5150 RPM | 30000 Hrs | 30.5 dB | Plastic | Plastic | 2 Wire Leads | 0.04 lb | 18.14 g | 12 VDC | Ball | Blower | 97.4 Pa | 0.391 in H2O | ||||
Delta Electronics | 20 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CE CSA UL VDE | 0.118 m³/min | 4.2 CFM | 13.8 VDC | 5 VDC | 70 mA | 3300 RPM | 20000 Hrs | 21 dB(A) | Plastic | Plastic | 840 mW | 2 Wire Leads | 0.038 lb | 17.24 g | 12 VDC | Ball | Blower | 67 Pa | 0.269 in H2O | Square/Rounded | |
Delta Electronics | 20 mm | 45 mm | 45 mm | 70 °C | 70 °C | -10 °C | -10 °C | CSA UR VDE | 0.168 m³/min | 6 CFM | 13.2 VDC | 5 VDC | 4500 RPM | 70000 Hrs | 30.5 dB | Plastic | Plastic | Locked Rotor Protection Speed Sensor (Tach) | 1.92 W | 3 Wire Leads | 0.038 lb | 17.24 g | 12 VDC | Ball | Blower | 138.7 Pa | 0.557 in H2O | Square/Rounded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.47 | |
| 10 | $ 15.72 | |||
| 25 | $ 14.22 | |||
| 50 | $ 13.10 | |||
| 100 | $ 11.75 | |||
| 250 | $ 10.85 | |||
| 500 | $ 10.10 | |||
Description
General part information
BFB04512 Series
Fan Blower 12VDC Square - 45mm L x 45mm H Ball 3.6 CFM (0.101m³/min) 4 Wire Leads
