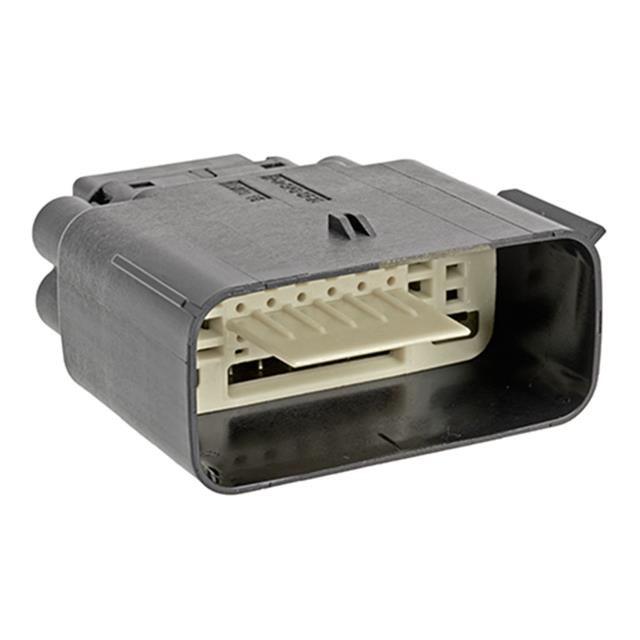

0349861959

Active

Molex

CONN PLUG HSG 16POS

Search across all available documentation for this part.

Active

Molex

CONN PLUG HSG 16POS

Technical Specifications

Parameters and characteristics for this part

Specification	0349861959

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Blade
Fastening Type	Locking Ramp
Features	Sealed
Insulation Material	Nylon, Syndiotatic Polystyrene (SPS), Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Insulation Material	Mounting Type	Contact Termination	Fastening Type	Note	Color	Features	Number of Positions	Number of Rows
Molex 0349861959	125 °C	-40 °C	Plug	Male Blade	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Free Hanging (In-Line)	Crimp	Locking Ramp	Contacts Not Included	Black	Sealed	16
Molex 0349861702			Plug	Male Blade		Free Hanging (In-Line)	Crimp	Locking Ramp	Contacts Not Included	Gray	Sealed	16	2
Molex 0349862180
Molex 0349862010	125 °C	-40 °C	Plug	Male Blade	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	Free Hanging (In-Line)	Crimp	Locking Ramp		Natural	Sealed	16	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Rectangular Connectors - Housings Plug Black
