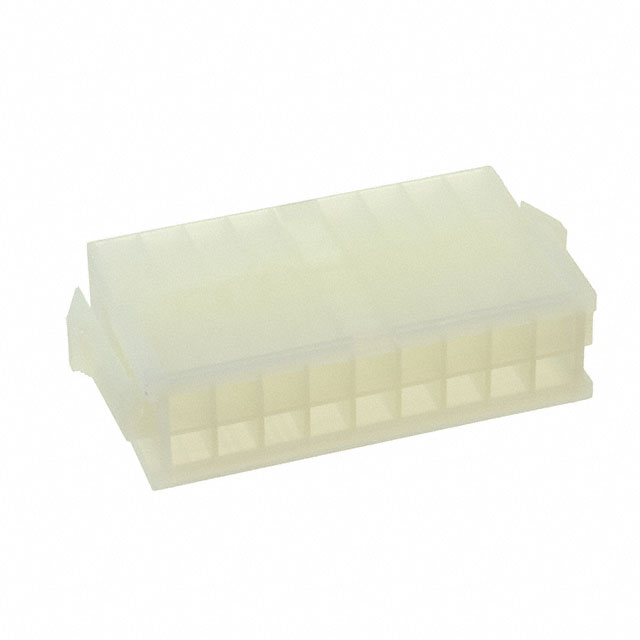

DMF-18-W
ActiveAdam Tech
CONN PLUG HSG 18POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DMF-18-W
ActiveAdam Tech
CONN PLUG HSG 18POS 4.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMF-18-W |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Note | Contacts Not Included |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
DMF Series
| Part | Mounting Type | Row Spacing | Row Spacing | Contact Type | Number of Rows | Connector Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Number of Positions | Insulation Material | Note | Pitch [x] | Pitch [x] | Fastening Type | Insulation Color | Number of Positions Loaded | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Number of Positions | Voltage Rating | Termination | Style | Contact Shape | Contact Length - Post | Contact Length - Post | Shrouding | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Panel Mount Snap-In | 4.2 mm | 0.165 in | Female Socket | 2 | Plug | Natural | -40 °C | 105 ░C | Crimp | 16 | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | 4.2 mm | 0.165 in | Locking Ramp | ||||||||||||||||||||||
Adam Tech | Through Hole Right Angle | Male Pin | 2 | Header | -25 °C | 120 °C | Polyamide (PA66) Nylon 6/6 | Locking Ramp | Natural | All | 7 A | 4.2 mm | 0.165 in | UL94 V-2 | Brass | 0.217 in | 5.51 mm | Tin | 10 | 600 VAC | Solder | Board to Cable/Wire | Square | 0.13 in | 3.3 mm | Shrouded - 4 Wall | 10 mm | 0.394 " | ||||||||||
Adam Tech | Panel Mount Snap-In | 4.2 mm | 0.165 in | Female Socket | 2 | Plug | Natural | -40 °C | 105 ░C | Crimp | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | 4.2 mm | 0.165 in | Locking Ramp | 18 | ||||||||||||||||||||||
Adam Tech | Through Hole | Male Pin | 2 | Header | -25 °C | 85 °C | Polyamide (PA66) Nylon 6/6 | Locking Ramp | Natural | All | 7 A | 4.2 mm | 0.165 in | UL94 V-2 | Brass | 0.165 in | 4.2 mm | Tin | 2 | 250 VAC | Solder | Board to Cable/Wire | Square | Shrouded - 4 Wall | 12.8 mm | 0.504 in | 0.134 in | 3.4 mm | ||||||||||
Adam Tech | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Female Socket | 2 | Plug | Natural | -40 °C | 105 ░C | Crimp | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | 4.2 mm | 0.165 in | Locking Ramp | 6 | ||||||||||||||||||||||
Adam Tech | Through Hole Right Angle | Male Pin | 2 | Header | -25 °C | 120 °C | 16 | Polyamide (PA66) Nylon 6/6 | Locking Ramp | Natural | All | 6 A | 4.2 mm | 0.165 in | UL94 V-2 | Brass | 0.217 in | 5.51 mm | Tin | 600 VAC | Solder | Board to Cable/Wire | Square | 0.13 in | 3.3 mm | Shrouded - 4 Wall | 10 mm | 0.394 " | ||||||||||
Adam Tech | Through Hole | Male Pin | 2 | Header | -25 °C | 85 °C | Polyamide (PA66) Nylon 6/6 | Locking Ramp | Natural | All | 7 A | 4.2 mm | 0.165 in | UL94 V-2 | Brass | 0.165 in | 4.2 mm | Tin | 10 | 250 VAC | Solder | Board to Cable/Wire | Square | Shrouded - 4 Wall | 12.8 mm | 0.504 in | 0.134 in | 3.4 mm | ||||||||||
Adam Tech | Through Hole Right Angle | Male Pin | 2 | Header | -25 °C | 120 °C | Polyamide (PA66) Nylon 6/6 | Locking Ramp | Natural | All | 8 A | 4.2 mm | 0.165 in | UL94 V-2 | Brass | 0.217 in | 5.51 mm | Tin | 4 | 600 VAC | Solder | Board to Cable/Wire | Square | 0.13 in | 3.3 mm | Shrouded - 4 Wall | 10 mm | 0.394 " | ||||||||||
Adam Tech | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Female Socket | 2 | Plug | Natural | -40 °C | 105 ░C | Crimp | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | 4.2 mm | 0.165 in | Locking Ramp | 24 | ||||||||||||||||||||||
Adam Tech | Free Hanging (In-Line) | 4.2 mm | 0.165 in | Female Socket | 2 | Plug | Natural | -40 °C | 105 ░C | Crimp | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | 4.2 mm | 0.165 in | Locking Ramp | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.04 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.55 | |||
Description
General part information
DMF Series
18 Rectangular Connectors - Housings Plug Natural 0.165" (4.20mm)
