TE5-1A-DC-1-RL
ActiveSwitch Components

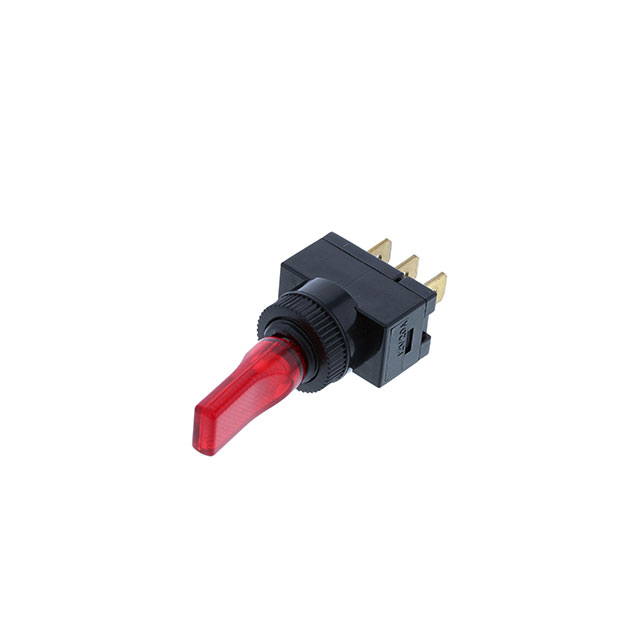

SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TE5-1A-DC-1-RL
ActiveSwitch Components
SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TE5-1A-DC-1-RL |
|---|---|
| Actuator Length [x] | 25 mm |
| Actuator Material | Polycarbonate (PC) |
| Actuator Type | Flatted |
| Bushing Thread | M12 |
| Bushing Thread | 1 x 1 |
| Circuit | SPST |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination | Illuminated |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.61 | |
| 10 | $ 3.46 | |||
| 25 | $ 3.32 | |||
| 50 | $ 3.25 | |||
| 100 | $ 3.14 | |||
| 250 | $ 2.91 | |||
| 500 | $ 2.43 | |||
| 1000 | $ 2.22 | |||
Description
General part information
TE5-1A Series
Toggle Switch SPST Panel Mount
