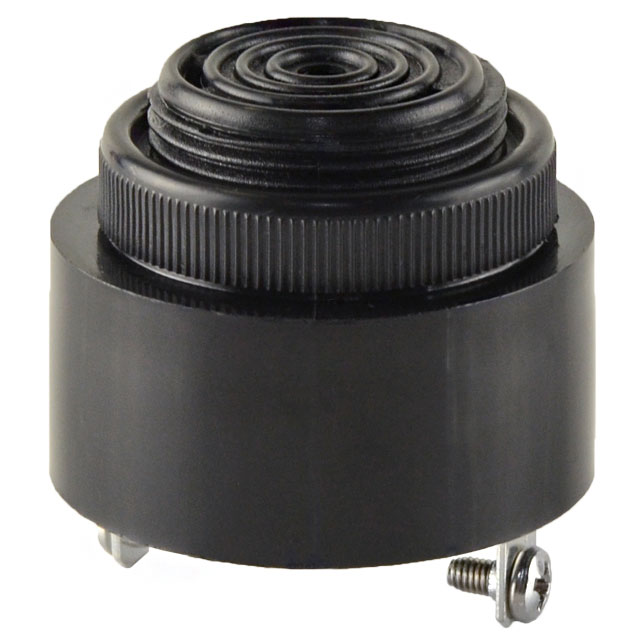

CPI-4233C-120

Active

CUI Devices

BUZZER PIEZO 12V 42.50MM PNL MNT

Search across all available documentation for this part.

Active

CUI Devices

BUZZER PIEZO 12V 42.50MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	CPI-4233C-120

Current - Supply	12 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.8 kHz
Input Type	DC
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Size / Dimension [diameter]	42.5 mm
Size / Dimension [diameter]	1.673 in
Sound Pressure Level (SPL)	94 dB
Technology	Piezo
Termination	6.5 mm
Termination	0.256 "
Termination	Screw Terminal, Quick Connect Tab
Voltage - Rated	12 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	6 VDC

Part	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Mode	Driver Circuitry	Technology	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Frequency	Current - Supply	Termination	Termination	Termination	Termination
CUI Devices CPI-4233C-120	DC	-30 ░C	85 °C	Single Tone	Indicator Internally Driven	Piezo	94 dB	42.5 mm	1.673 in	Top	12 VDC	6 VDC	28 VDC	2.8 kHz	12 mA	6.5 mm	0.256 "	Screw Terminal Quick Connect Tab
CUI Devices CPI-4233-87T	DC	-30 ░C	85 °C	Fast Pulse	Indicator Internally Driven	Piezo	87 dB	42.5 mm	1.673 in	Top	12 VDC	6 VDC	28 VDC	2.8 kHz	9 mA		6.5 mm	Quick Connect Tab	0.256 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Piezo 12 V 12mA 2.8kHz 94dB @ 12V, 30cm Panel Mount Screw Terminal, Quick Connect Tab - 0.256" (6.50mm)
