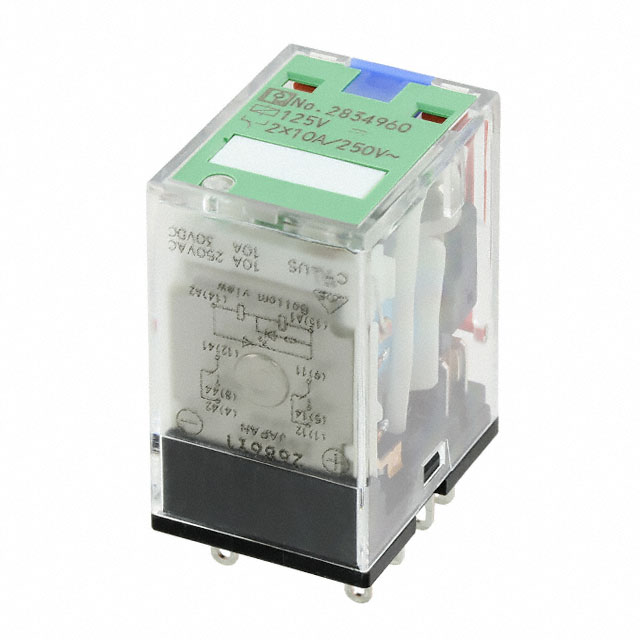

2834960

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 10A 125V

Search across all available documentation for this part.

Documents2834960

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 10A 125V

Documents2834960

Technical Specifications

Parameters and characteristics for this part

Specification	2834960

Approval Agency	VDE, UL, EAC, cULus
Coil Current	7.2 mA
Coil Resistance	17.36 kOhms
Coil Type	Non Latching
Coil Voltage	125 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Features	Test Button, Mechanical Indicator, Diode
Mounting Type	Socketable
Operate Time	13 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	14 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Plug In

Part	Approval Agency	Mounting Type	Contact Rating (Current)	Release Time	Operate Time	Coil Type	Coil Resistance	Features	Coil Voltage	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Contact Form	Contact Material	Switching Voltage	Coil Current
Phoenix Contact 2834960	cULus EAC UL VDE	Socketable	10 A	14 ms	13 ms	Non Latching	17.36 kOhms	Diode Mechanical Indicator Test Button	125 VDC	Plug In	70 °C	-55 °C	General Purpose	DPDT (2 Form C)	Silver (Ag)	250 VAC 250 VDC	7.2 mA
Phoenix Contact 2834957	cULus EAC UL VDE	Socketable	10 A	14 ms	13 ms	Non Latching	61.11 kOhms	Diode Mechanical Indicator Test Button	220 VDC	Plug In	70 °C	-55 °C	General Purpose	DPDT (2 Form C)	Silver (Ag)	250 VAC 250 VDC	3.6 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 125VDC Coil Socketable
